1
Engine displacement
300
2
Model
GTV
3
Year
2012
4
Trim
GTV 4T 4V ie
5
Parts Catalog

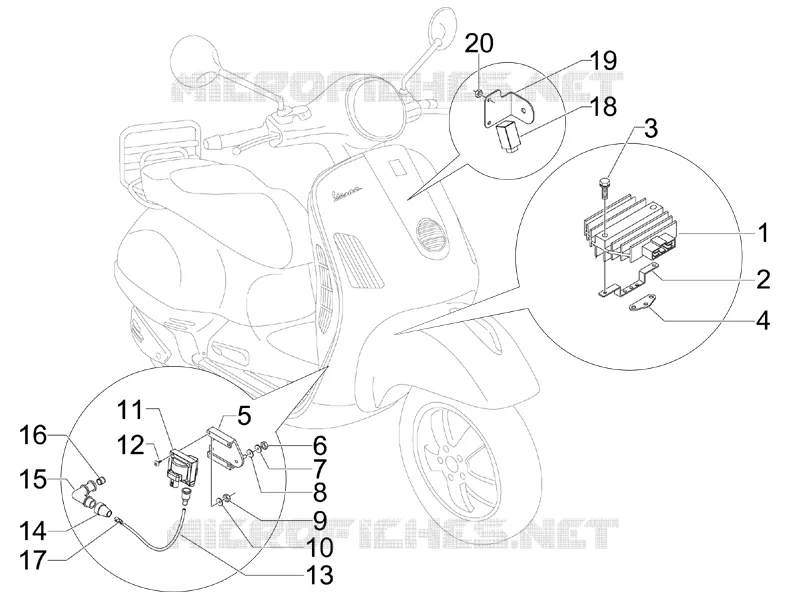

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
6
Parts Diagram
Parts Catalog
Main cable harness
by
Cooler pump
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Voltage regulator
641709
£166,74 Unit Price incl. VAT
1
Voltage regulator
58208R
Not Available
2
Voltage regulator support bracket
621157
£10,79 Unit Price incl. VAT
3
Screw w/ flange M6x30
289731
Not Available
4
Regulator retainer plate
622838
£7,73 Unit Price incl. VAT
5
AT coil support bracket
641105
£19,15 Unit Price incl. VAT
6
Nut M6
020106
Not Available
7
Spring washer 6,4x11,8x1
016406
Not Available
8
Flat washer 16x6,5x1,5
013880
Not Available
9
Nut M 3
020003
Not Available
10
Washer 3.2x5.7x0.9
012554
Not Available
11
HT coil
58120R
£53,05 Unit Price incl. VAT
12
screw M3x20
583236
£1,27 Unit Price incl. VAT
13
H.V. cable
080341
Not Available
14
Insulating cap
071671
Not Available
15
Screened cap
969348
£15,46 Unit Price incl. VAT
16
Spark.plug protection clamp
641643
£9,05 Unit Price incl. VAT
17
End cap
015014
Not Available
18
Turn indicator control
638755
Not Available
19
Bulb device bracket
652706
£9,66 Unit Price incl. VAT
20
Nut
969224
£0,16 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
