Engine displacement
125
2
Model
LT
3
Year
2015
4
Trim
LT 4T 3V ie E3
5
Parts Catalog
Stater - Electric starter
6

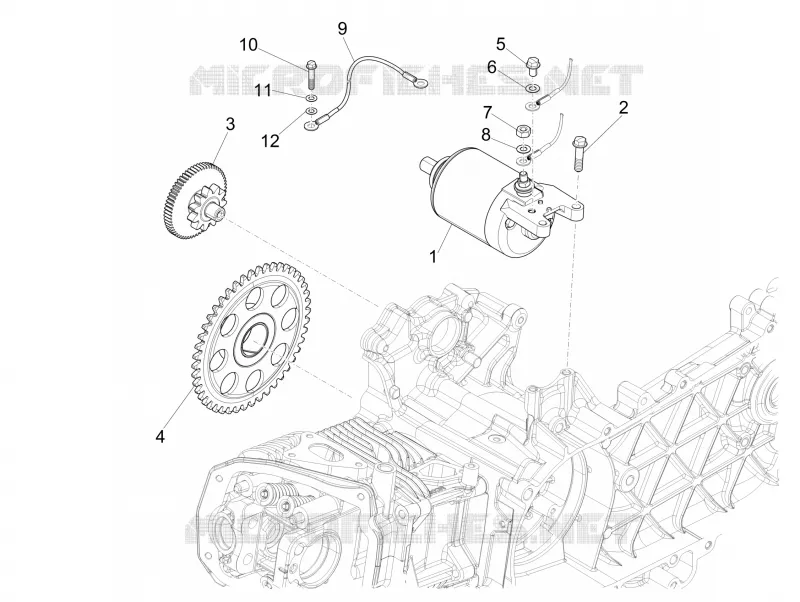

Parts Diagram
Parts Catalog
Frame/bodywork
by
Main cable harness
Stater - Electric starter
1
2
3
4
5
6
7
8
9
10
11
12
1
Starter motor
1D001647
Not Available
2
Screw w/ flange M6x25
1A000350
£1,76 Unit Price incl. VAT
3
Electric starter gear
880317
£19,43 Unit Price incl. VAT
4
Starter motor gear
B014165
£65,42 Unit Price incl. VAT
5
Screw w/ flange M6x10
969296
£1,27 Unit Price incl. VAT
6
Spring washer 12x6,4x0,5
006976
Not Available
7
Nut M6
020106
Not Available
8
Spring washer 6,4x11,8x1
016406
Not Available
9
Earth braid
581309
Not Available
10
Tri/lobed hexagonal self-tapping screw
641204
£1,24 Unit Price incl. VAT
11
Spring washer 6,4x11,8x1
016406
Not Available
12
Flat washer 6,4x12x1
003056
Not Available
