1
Engine displacement
125
2
Model
LX
3
Year
2013
4
Trim
LX 4T 3V ie
5
Parts Catalog

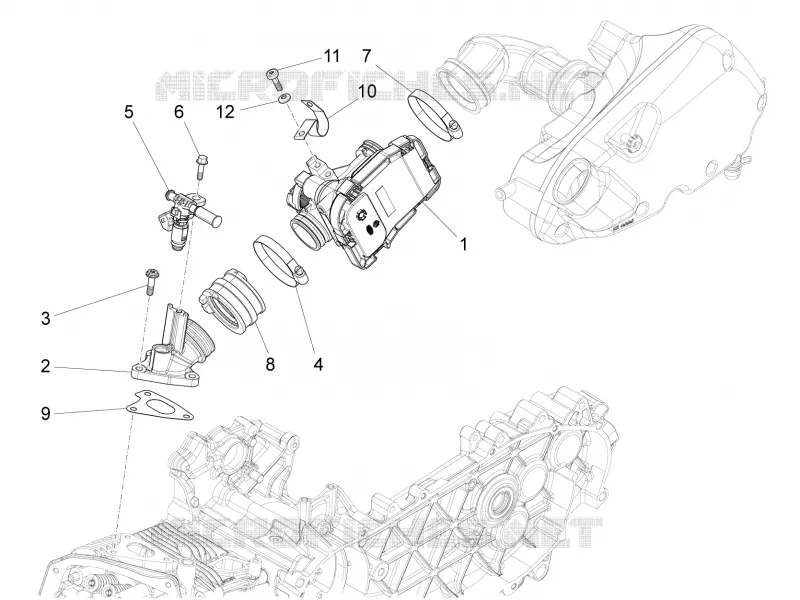

Throttle body - Injector - Union pipe
6
Parts Diagram
Parts Catalog
Wheel huosing - Mudguard
by
Rear suspension - Shock absorber/s
Throttle body - Injector - Union pipe
1
2
3
4
5
6
7
8
9
10
11
12
1
Throttle body with E.C.U.
CM088103
£512,68 Unit Price incl. VAT
2
Induction joint with I.P.
1A004694
Not Available
2
Induction joint with I.P.
B018995
Not Available
3
Antitampering screw M6x22
B016007
Not Available
4
Hose clamp
B016006
Not Available
5
Injector complete with connection
8799715
£184,85 Unit Price incl. VAT
6
Screw w/ flange M5x8x20
B016008
Not Available
7
Hose clamp
B016009
Not Available
8
Hose
B016668
Not Available
9
Gasket
B015678
Not Available
10
Metallic clamp
642044
£2,45 Unit Price incl. VAT
11
Screw M5x15
873653
£5,14 Unit Price incl. VAT
12
Washer
012528
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
