1
Engine displacement
125
2
Model
LX
3
Year
2006
4
Trim
LX 4T E3
5
Parts Catalog

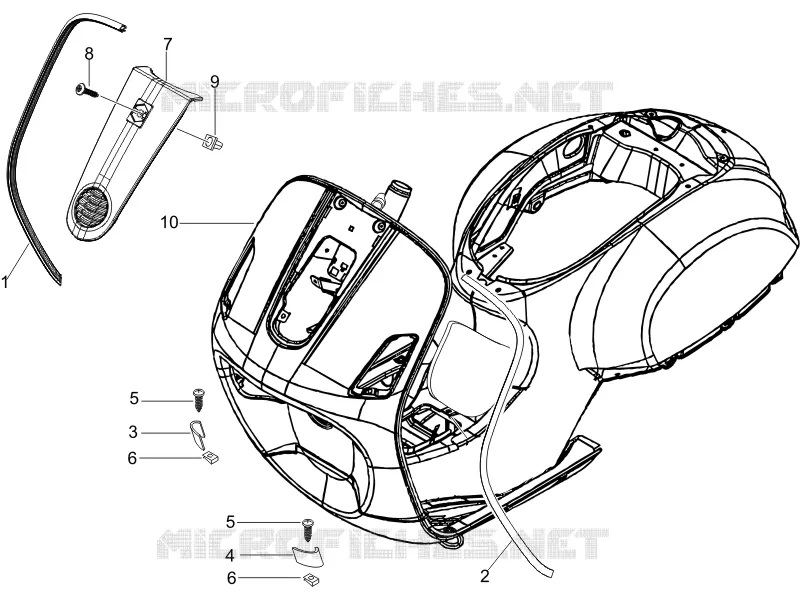

Front shield
6
Parts Diagram
Parts Catalog
Main cable harness
by
Engine, assembly
Front shield
1
2
3
4
5
5
6
6
7
8
9
10
1
Right-hand shield edge
622188
£38,70 Unit Price incl. VAT
2
Left-hand shield edge
622187
£38,70 Unit Price incl. VAT
3
Butt strap DX
299965
£3,17 Unit Price incl. VAT
4
Butt strap SX
299964
£3,17 Unit Price incl. VAT
5
Screw d3,5x9,5
008432
Not Available
6
Spring plate
CM017403
£0,90 Unit Price incl. VAT
7
HANDLEBARS COVER
6229076087
Not Available
7
HANDLEBARS COVER
62290760AF
£111,40 Unit Price incl. VAT
7
HANDLEBARS COVER
62290760ND
Not Available
7
Steering column cover
62290700AF
Not Available
7
Steering column cover
62290750F3
Not Available
7
Steering cover
62290700GP
Not Available
7
ET STEERING COVER
6229075087
Not Available
7
HANDLEBARS COVER
62290750GP
Not Available
7
HANDLEBARS COVER
62290760R7
Not Available
7
Steering column cover
622907
Not Available
7
Steering column cover
62290750ND
Not Available
7
ET STEERING COVER
62290750DE
Not Available
7
HANDLEBARS COVER
62290760F3
Not Available
7
ET STEERING COVER
62290750AF
Not Available
7
Painted steering cover
62290700VG
Not Available
7
HANDLEBARS COVER
62290760F2
Not Available
7
Steering column cover
62290750R7
Not Available
7
Steering column cover
62290750F2
Not Available
7
Painted steering cover
62290750VG
Not Available
8
Self tapping screw L=20 mm
267958
£0,76 Unit Price incl. VAT
9
Expansion plug
199190
£0,17 Unit Price incl. VAT
10
Body shield
6221145
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
