Parts Catalog
Front shield
6

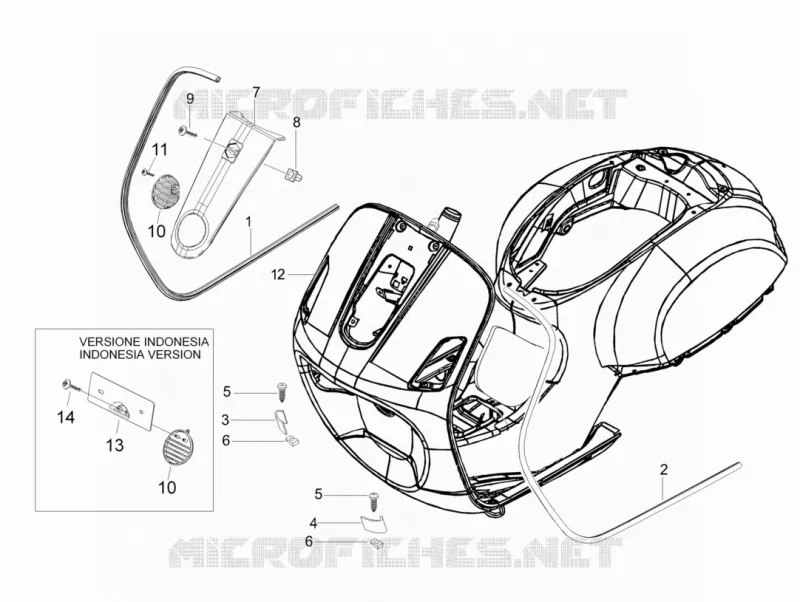

Parts Diagram
Parts Catalog
Main cable harness
by
Front headlamps - Turn signal lamps
Front shield
1
2
3
4
5
5
6
6
7
8
9
10
10
11
12
13
14
1
Right-hand shield edge
622188
£38,70 Unit Price incl. VAT
2
Left-hand shield edge
622187
£38,70 Unit Price incl. VAT
3
Butt strap DX
299965
£3,17 Unit Price incl. VAT
4
Butt strap SX
299964
£3,17 Unit Price incl. VAT
5
Screw d3,5x9,5
008432
Not Available
6
Spring plate
CM017403
£0,90 Unit Price incl. VAT
7
Painted steering cover
65596420M5
Not Available
7
Steering column cover
65596460P3
Not Available
7
Steering column cover
65596400AH
Not Available
7
Painted steering cover
65596400R7
Not Available
7
Steering column cover
65596400M4
Not Available
7
Steering column cover
6559645
Not Available
7
Steering column cover
65596440BR
Not Available
7
Steering column cover
65596420C5
Not Available
7
Steering column cover
65596440RS
£111,90 Unit Price incl. VAT
7
Steering column cover
65596400GP
£98,96 Unit Price incl. VAT
7
Steering column cover
65596440ND
£111,90 Unit Price incl. VAT
8
Expansion plug
199190
£0,17 Unit Price incl. VAT
9
Self tapping screw L=20 mm
267958
£0,76 Unit Price incl. VAT
10
Steering Cover Front Cowl
781097
£20,81 Unit Price incl. VAT
10
Steering Cover Front Cowl
655965
£23,16 Unit Price incl. VAT
11
Self tapping screw
257613
£0,36 Unit Price incl. VAT
12
Body shield
6221145
Not Available
13
Number plate holder
781060
£8,10 Unit Price incl. VAT
14
Self tapping screw
297498
£0,60 Unit Price incl. VAT
