Engine displacement
125
2
Model
LX
3
Year
2009
4
Trim
LX 4T ie E3
5
Parts Catalog
Oil pump
6
Parts Diagram
Parts Catalog
Throttle body - Injector - Union pipe
by
Stand/s
Oil pump
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
Oil pump assembly
82877R
Not Available
1
Oil pump assembly
82948R
£130,91 Unit Price incl. VAT
2
Carter-oil pump gasket
486082
Not Available
3
Screw w/ flange M5x35
829593
£1,27 Unit Price incl. VAT
4
Motor oil cup
843761
£70,16 Unit Price incl. VAT
5
Sump gasket
830128
£6,46 Unit Price incl. VAT
6
Screw w/ flange M6x30
289731
Not Available
7
Retainer clamp
487824
Not Available
8
Oil plug assembly
843364
£5,90 Unit Price incl. VAT
9
O-ring
479986
Not Available
10
Locating dowel Ø7,5x12
277916
£6,38 Unit Price incl. VAT
11
Oil seal washer
483918
£1,27 Unit Price incl. VAT
12
O-Ring seal ring
825952
£0,79 Unit Price incl. VAT
13
Camshaft chain
82643R
£56,02 Unit Price incl. VAT
14
Timing chain pinion
82782R
£22,31 Unit Price incl. VAT
15
Oil pump chain
82649R
£15,60 Unit Price incl. VAT
16
Oil pump control pinion
82783R
£22,50 Unit Price incl. VAT
17
Complete chain tensioner
82650R
£25,94 Unit Price incl. VAT
18
Guarnizione cilindro/tendicatena
847928
£3,24 Unit Price incl. VAT
19
Screw w/ flange M6x16
434541
Not Available
20
Chain tensioner rod spacer
485868
Not Available
21
Screw w/ flange M6x25
414837
Not Available
22
Chain tensioner rod
840510
£6,31 Unit Price incl. VAT
23
Chain tensioner sliding block
828308
£4,94 Unit Price incl. VAT
24
Timing system cover
483775
Not Available
25
Oil pump chain drift
434345
£7,32 Unit Price incl. VAT
26
Gasket ring
82538R
£15,91 Unit Price incl. VAT
27
Gasket ring
825620
£8,42 Unit Price incl. VAT
28
Self-tapping screw
018623
Not Available
29
Plain washer
487937
Not Available

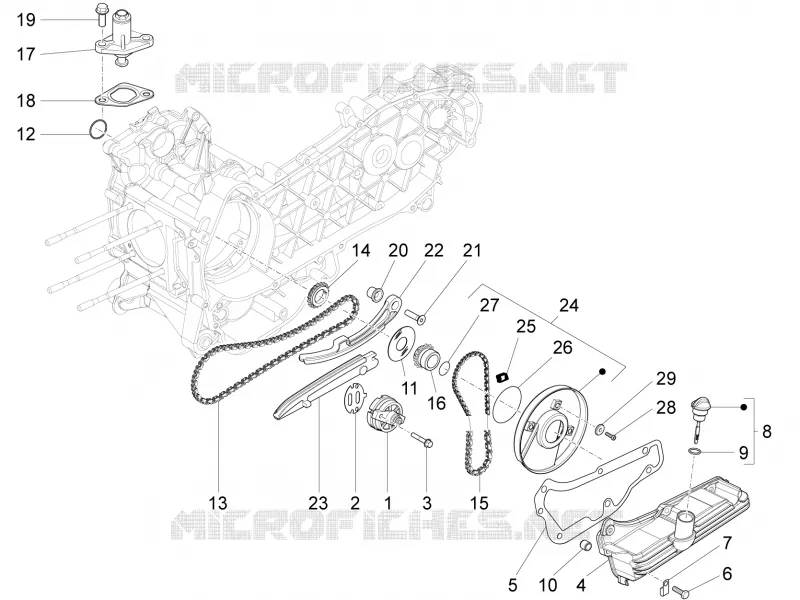

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
