Engine displacement
125
2
Model
LX
3
Year
2012
4
Trim
LX 4T ie E3
5
Parts Catalog
Flywheel magneto cover - Oil filter
6
Parts Diagram
Parts Catalog
Throttle body - Injector - Union pipe
by
Central cover - Footrests
Flywheel magneto cover - Oil filter
1
1
2
2
3
4
5
6
7
8
10
11
12
13
13
13
13
14
15
15
16
17
18
18
19
20
20
1
Oil filter plug
826165
£22,13 Unit Price incl. VAT
2
O-ring 31,47x1,78
285536
£1,64 Unit Price incl. VAT
3
Intake oil filter
483841
£4,88 Unit Price incl. VAT
4
O-ring 20,35x1,78
288474
£0,52 Unit Price incl. VAT
5
Oil filter
82635R
Not Available
6
Special screw
483776
£4,81 Unit Price incl. VAT
7
Oil pressure sensor
641541
Not Available
8
Hose clamp
825481
£1,24 Unit Price incl. VAT
10
Oil pump gear
287913
£8,52 Unit Price incl. VAT
11
Screw w/ flange M6x14
833722
Not Available
12
Belleville spring Ø6,4xØ20x2
436695
£2,09 Unit Price incl. VAT
13
Bush
843757
£4,26 Unit Price incl. VAT
14
Air deflector
876918
Not Available
15
Hex socket screw M5x25
486972
Not Available
16
Washer Ø5xØ12x1.1
828583
£0,50 Unit Price incl. VAT
17
screw
259577
£0,97 Unit Price incl. VAT
18
Conveyor cover
876919
£36,64 Unit Price incl. VAT
19
Self-tap screw M3x20
258146
£0,65 Unit Price incl. VAT
20
Washer 10.5X16X2.5
486075
£1,32 Unit Price incl. VAT

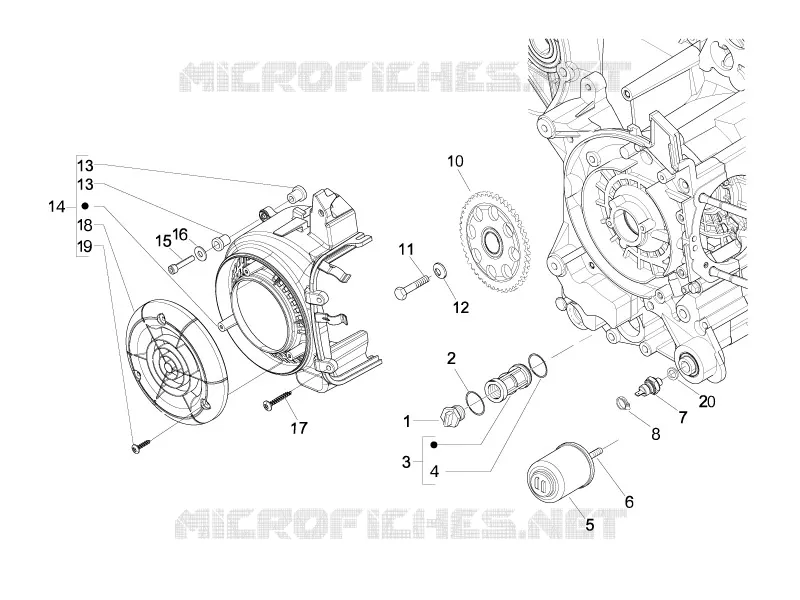

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
