Engine displacement
125
2
Model
LX
3
Year
2011
4
Trim
LX 4T ie E3 Touring
5
Parts Catalog
Rocking levers support unit
6
Parts Diagram
Parts Catalog
Handlebars - Master cil.
by
Saddle/seats
Rocking levers support unit
1
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
1
Rocker arm cpl.
830453
Not Available
1
Rocker arm cpl.
8304535
Not Available
2
Adjuster screw
82817R
Not Available
3
Nut
484819
£1,33 Unit Price incl. VAT
4
Timing system gear
486336
Not Available
4
Timing system gear
877771
Not Available
5
Hex screw M6x20
018639
Not Available
6
Hex socket screw M5x25
486972
Not Available
7
Washer
487832
Not Available
8
Plain washer
830446
£4,58 Unit Price incl. VAT
9
Plain washer
830447
£4,22 Unit Price incl. VAT
10
Rocker arms axis
486339
£16,13 Unit Price incl. VAT
11
Camshaft axle with U.P.
878137
Not Available
12
Camshaft plate
833308
Not Available
13
Screw w/ flange
484123
£0,54 Unit Price incl. VAT

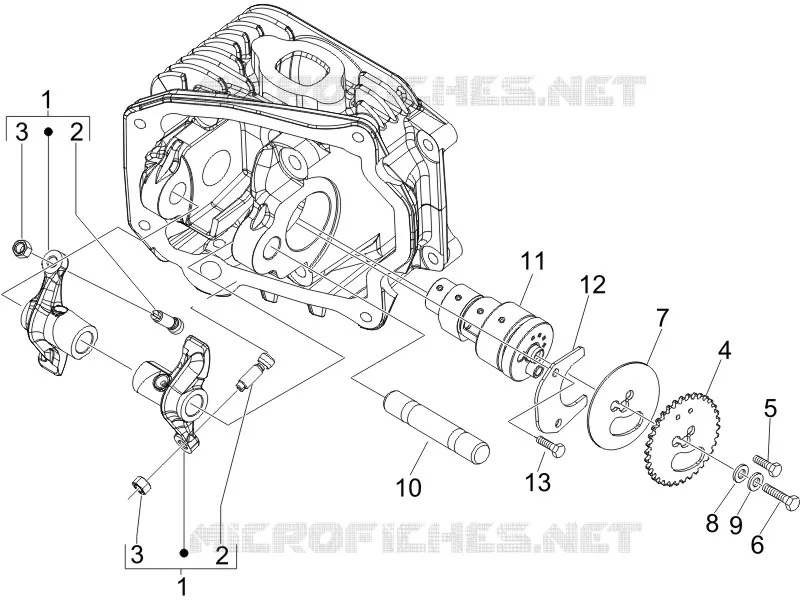

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
