Engine displacement
150
2
Model
LX
3
Year
2011
4
Trim
LX 4T 2V ie E3
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Rocking levers support unit
by
Front shield
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
1
Steering tube ring nut
0111094
Not Available
2
Washer of the steering
0037514
Not Available
3
Upper thrust ring
650693
Not Available
4
Lower steering bearing
650075
Not Available
5
Not available
5602865
£182,66 Unit Price incl. VAT
6
Ring
177494
£4,73 Unit Price incl. VAT
7
Drawn cap
177436
Not Available
8
Front wheel hub
560284
Not Available
9
Snap ring
006635
Not Available
10
Bearing
177610
£20,51 Unit Price incl. VAT
11
Front wheel hub
560284
Not Available
12
Ring gear counts Km socket
267818
£33,11 Unit Price incl. VAT
13
Roller cage
177442
£7,33 Unit Price incl. VAT
14
Brake disc
56395R
£61,37 Unit Price incl. VAT
15
Spring plate M6
254485
£1,64 Unit Price incl. VAT
16
Hex socket screw M6x20
667152
£1,27 Unit Price incl. VAT
17
Gasket ring
177443
£3,55 Unit Price incl. VAT
18
Nut
021114
Not Available
19
Cap
177609
£3,76 Unit Price incl. VAT
20
Split pin
012789
Not Available
21
Cover
092517
Not Available
22
Circlip
006422
Not Available
23
Washer
177414
£1,62 Unit Price incl. VAT
24
Ring
177521
£1,62 Unit Price incl. VAT
25
Washer
177445
£1,62 Unit Price incl. VAT
26
O-ring
177408
£1,33 Unit Price incl. VAT
27
Front suspension arm cover
561433
Not Available
28
Pinion
267819
£3,60 Unit Price incl. VAT
29
screw M5x16
031058
Not Available
30
Washer Ø5,3xØ10x0,5
006975
Not Available
31
Arm complete steering tube
648413
Not Available
32
Left suspension arm
6483975
£98,51 Unit Price incl. VAT
33
Roller cage
198513
£15,49 Unit Price incl. VAT
34
Gasket ring
119219
£1,58 Unit Price incl. VAT
35
Piston pin
177451
£22,88 Unit Price incl. VAT
36
Gasket
006731
Not Available
37
Front shock absorber cpl.
601997
£169,04 Unit Price incl. VAT
38
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
39
Spring washer
709047
£0,70 Unit Price incl. VAT
40
Pad
174874
£3,66 Unit Price incl. VAT
41
Pad
174085
£2,87 Unit Price incl. VAT
42
Washer
174088
£1,62 Unit Price incl. VAT
43
Washer
012535
Not Available
44
Nut
021210
Not Available
45
Shock absorber connection bracket
601556
£31,18 Unit Price incl. VAT
46
Brake pipe support bracket
665701
£13,09 Unit Price incl. VAT
47
screw
031120
Not Available
48
Spring washer 13,75x8,15x4,5
016408
Not Available
49
Nut M8x6,5
020108
Not Available
50
Front suspension cover
60041640BR
Not Available
50
Front suspension cover
60041640M5
Not Available
50
Front suspension cover
60041640C5
Not Available
50
Front suspension cover
6004164
£63,12 Unit Price incl. VAT
50
Front suspension cover
60041640DE
Not Available
50
Front suspension cover
60041640GV
Not Available
50
Front suspension cover
60041640R7
£78,66 Unit Price incl. VAT
50
Front suspension cover
60041640P3
£78,66 Unit Price incl. VAT
50
Front suspension cover
60041640XN2
Not Available
51
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT

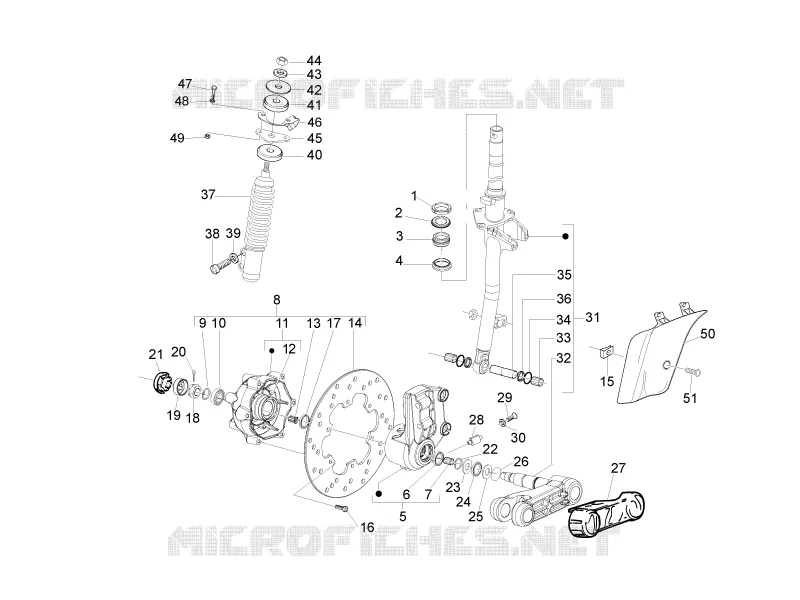

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
