Parts Catalog
Side cover - Spoiler
6

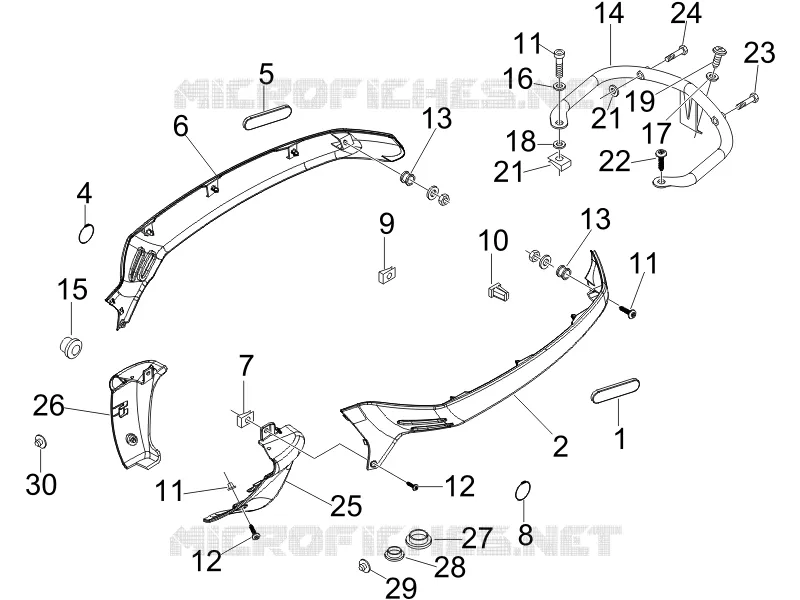

Parts Diagram
Parts Catalog
Central cover - Footrests
by
Wheel huosing - Mudguard
Side cover - Spoiler
1
2
4
5
6
7
8
9
10
11
11
11
12
12
13
13
14
15
16
17
18
19
21
21
22
23
24
25
26
27
28
29
30
1
Left lateral retroreflector
584083
Not Available
2
Left lower fairing
62212740EP
Not Available
2
Left lower fairing
62212740DE
£118,10 Unit Price incl. VAT
2
Left lower fairing
62212700DE
Not Available
2
Left lower fairing
6221274087
Not Available
2
Left lower fairing
62212740F3
Not Available
2
LOWER LEFT FAIRING
62212700F3
Not Available
3
Spring plate
181351
£0,98 Unit Price incl. VAT
4
Gasket
584995
£6,44 Unit Price incl. VAT
5
Right lateral retroreflector
584084
Not Available
6
Right lower fairing
6221284087
Not Available
6
LOWER RIGHT FAIRING
62212800F3
Not Available
6
LOWER RIGHT FAIRING
62212800DE
Not Available
6
Right lower fairing
62212840DE
£118,10 Unit Price incl. VAT
6
Right lower fairing
62212840EP
Not Available
6
Right lower fairing
62212840F3
Not Available
7
Spring plate
181351
£0,98 Unit Price incl. VAT
8
Gasket
584995
£6,44 Unit Price incl. VAT
9
Spring plate
CM017410
£0,71 Unit Price incl. VAT
10
Expansion plug
199190
£0,17 Unit Price incl. VAT
11
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
12
Self tapping screw
296141
£1,39 Unit Price incl. VAT
13
Elastic drift
463195
Not Available
14
Handle
623572
Not Available
15
Handle plug
623561
£5,33 Unit Price incl. VAT
16
Spring washer 6,4x11x0,5
006966
Not Available
17
Notched washer 6,6x11x0
012533
Not Available
18
Flat washer 16x6,5x1,5
013880
Not Available
19
Hex screw M6x22
031091
Not Available
20
Washer
078307
Not Available
21
Spring plate M6
254485
£1,64 Unit Price incl. VAT
22
Hex socket screw M6x20
271147
Not Available
23
Screw M6x16
272836
£1,13 Unit Price incl. VAT
24
Hex socket screw M6x30
319538
£1,24 Unit Price incl. VAT
25
Left spoiler rear terminal
62212940EP
Not Available
25
LEFT TERMINAL SPOILER
62212900F3
Not Available
25
Left spoiler rear terminal
62212940F3
Not Available
25
Left spoiler rear terminal
62212940DE
Not Available
25
Left spoiler rear terminal
6221294087
Not Available
26
Right spoiler rear terminal
62213000DE
Not Available
26
RIGHT TERMINAL SPOILER
62213000F3
Not Available
26
Right spoiler rear terminal
62213040DE
Not Available
26
Right spoiler rear terminal
62213040F3
£50,98 Unit Price incl. VAT
26
Right spoiler rear terminal
6221304087
£50,98 Unit Price incl. VAT
26
Right spoiler rear terminal
62213040EP
Not Available
27
Cover
299557
£2,33 Unit Price incl. VAT
28
Cover
299558
£2,21 Unit Price incl. VAT
29
Cover
299559
£4,13 Unit Price incl. VAT
30
Spoiler cover
620556
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
