1
Engine displacement
50
2
Model
LX
3
Year
2006
4
Trim
LX 4T
5
Parts Catalog

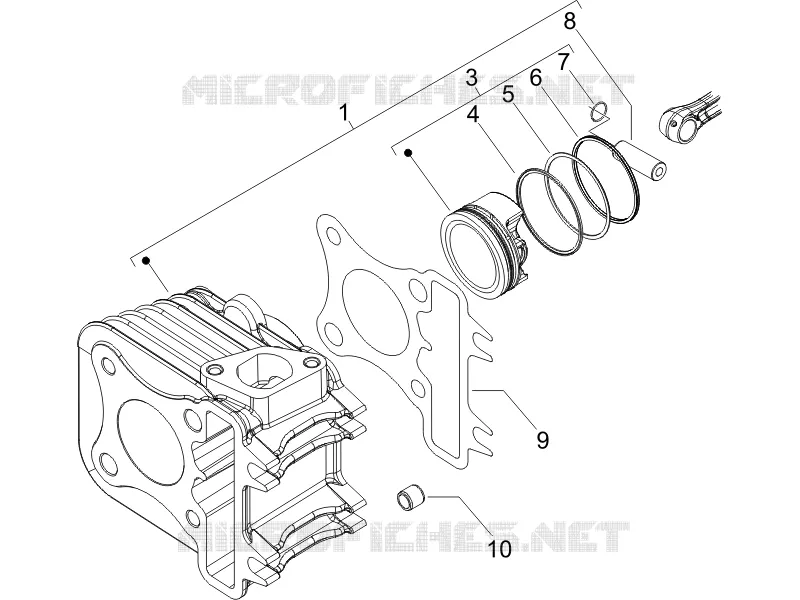

Cylinder-piston-wrist pin unit
6
Parts Diagram
Parts Catalog
Rocking levers support unit
by
Crankcase cover - Crankcase cooling
Cylinder-piston-wrist pin unit
1
3
4
5
6
7
8
9
10
1
Piston assy
969619
Not Available
1
Cylinder with piston
969603
£190,80 Unit Price incl. VAT
1
Piston assy
969617
Not Available
1
Piston assy
969618
Not Available
3
Piston assy Cat.A
9696045001
Not Available
3
Piston assy Cat.C
9696045003
£77,35 Unit Price incl. VAT
3
Piston assy Cat.B
9696045002
£77,35 Unit Price incl. VAT
3
Piston assy Cat.D
9696045004
£71,90 Unit Price incl. VAT
4
Gasket ring
969608
Not Available
4
Gasket ring
969611
Not Available
4
Gasket ring
969614
Not Available
4
Ring
969682
Not Available
4
Ring
969215
£13,44 Unit Price incl. VAT
5
Gasket ring
969612
Not Available
5
Gasket ring
969609
Not Available
5
Gasket ring
969615
Not Available
5
Ring
969216
£11,69 Unit Price incl. VAT
5
Ring
969681
Not Available
6
Scraper ring
969613
Not Available
6
Scraper ring
969610
Not Available
6
Oil scraper ring
969683
Not Available
6
Scraper ring
969616
Not Available
6
Oil scraper ring
969217
£10,10 Unit Price incl. VAT
7
Pin retainer circlip
969213
£0,65 Unit Price incl. VAT
8
Piston pin
969214
£14,21 Unit Price incl. VAT
9
Cylinder base gasket 0,5
969230
£5,03 Unit Price incl. VAT
10
Pin 6,5x9,5x15
239388
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
