Parts Catalog
Handlebars - Master cil.
6

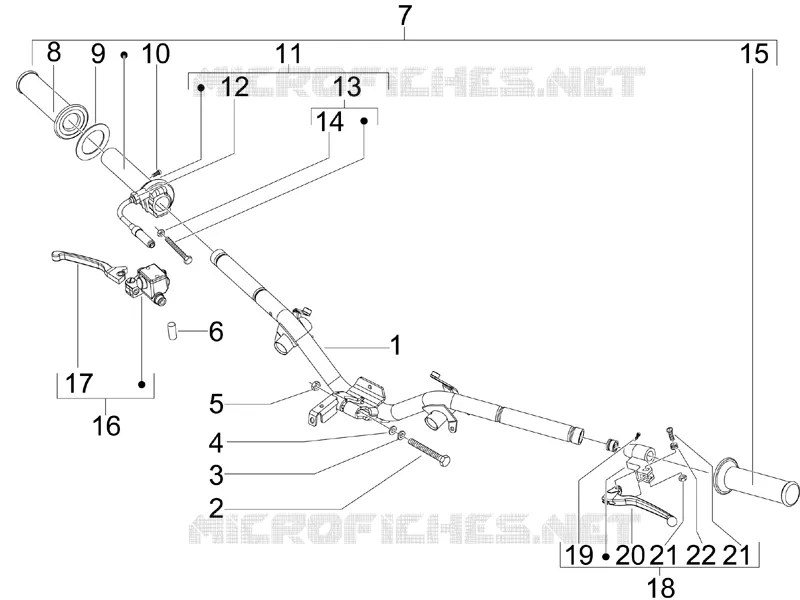

Parts Diagram
Parts Catalog
Fuel tank
by
Oil pump
Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
1
Handlebar with U.P.
57361R5
Not Available
1
Handlebar with U.P.
6555105
Not Available
2
Hex socket screw
655554
£1,97 Unit Price incl. VAT
3
Flat washer 18x10,2x2,5
267917
£0,36 Unit Price incl. VAT
4
Flat elastic washer with internal toothing 17x10,3x2
012543
Not Available
5
Nut M10
015330
Not Available
6
Guard
666117
£4,97 Unit Price incl. VAT
7
Throttle control sleeve assembly
CM060982
Not Available
8
Grip, r.h.
CM083804
£16,70 Unit Price incl. VAT
9
Ring 38,3x27x1,2
562923
£0,48 Unit Price incl. VAT
10
Screw with bushing
123394
£2,69 Unit Price incl. VAT
11
Complete throttle control transmission
650477
£43,25 Unit Price incl. VAT
12
Nut M8
020208
Not Available
13
Adjuster screw
269145
£2,58 Unit Price incl. VAT
14
Nut M6
020206
Not Available
15
Grip, l.h.
CM083803
£16,70 Unit Price incl. VAT
16
Front master cilinder
CM074904
£113,68 Unit Price incl. VAT
17
Brake lever
646833
Not Available
18
Left hand grip with rear brake lever
CM063804
£28,70 Unit Price incl. VAT
19
Screw with bushing
123394
£2,69 Unit Price incl. VAT
20
Rear brake control lever
564683
£16,16 Unit Price incl. VAT
21
Screw with nut
265249
£3,55 Unit Price incl. VAT
22
Spring
267948
£0,96 Unit Price incl. VAT
