1
Engine displacement
125
2
Model
LXV
3
Year
2014
4
Trim
LXV 4T 3V E3
5
Parts Catalog

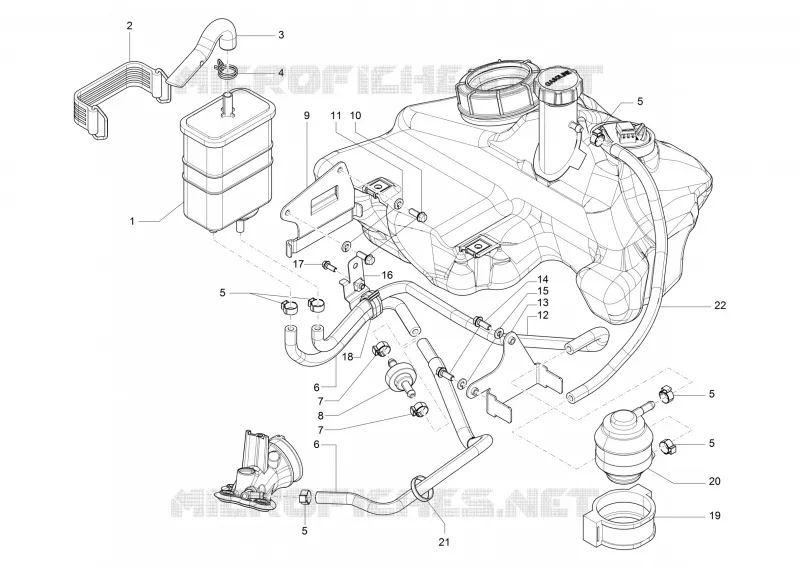

Anti-percolation system
6
Parts Diagram
Parts Catalog
Rocking levers support unit
by
Plates - Emblems
Anti-percolation system
22
22
21
21
20
20
19
19
18
18
17
17
16
16
15
15
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
7
7
6
6
6
6
5
5
5
5
5
5
5
5
5
5
4
4
3
3
2
2
1
1
1
Canister completo di stiker
1B0045715
£109,08 Unit Price incl. VAT
2
Strip
090854
Not Available
3
Canister breather pipe
656581
£10,86 Unit Price incl. VAT
4
Hose clamp
CM002912
£0,24 Unit Price incl. VAT
5
Hose clamp
CM001914
£1,57 Unit Price incl. VAT
6
pipe
CM177906
Not Available
7
Hose clamp
CM001914
£1,57 Unit Price incl. VAT
8
Safety valve
CM179003
Not Available
9
Bracket
576453
£18,34 Unit Price incl. VAT
10
Screw w/ flange M6x16
434541
Not Available
11
Spring washer 6,4x11,8x1
016406
Not Available
12
Sae j30 pipe R11-A O R12 1/4" L=920
CM177910
£37,28 Unit Price incl. VAT
13
Roll-over valve connection bracket
675420
Not Available
14
Screw w/ flange M6x16
434541
Not Available
15
Spring washer 6,4x11,8x1
016406
Not Available
16
Pipe support bracket with U.P.
657166
£13,86 Unit Price incl. VAT
17
Screw w/ flange M6x10
969296
£1,27 Unit Price incl. VAT
18
Non return spring l=27
CM006904
£2,32 Unit Price incl. VAT
19
Sae j30 pipe R11-A O R12 1/4" L=920
CM177910
£37,28 Unit Price incl. VAT
20
Volet
CM028201
£37,81 Unit Price incl. VAT
21
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
22
Sae j30 pipe L=1125 mm
CM177923
£69,56 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
