Engine displacement
125
2
Model
LXV
3
Year
2006
4
Trim
LXV 4T E3
5
Parts Catalog
Side cover - Spoiler
6
Parts Diagram
Parts Catalog
Central cover - Footrests
by
Wheel huosing - Mudguard
Side cover - Spoiler
1
2
3
3
4
5
6
7
17
19
20
21
25
26
27
28
29
30
1
Left lower fairing
62212740M4
Not Available
1
Left lower fairing
62212740EP
Not Available
1
Left lower fairing
62212740VG
£124,00 Unit Price incl. VAT
2
Right lower fairing
62212840VG
Not Available
2
Right lower fairing
62212840M4
Not Available
2
Right lower fairing
62212840EP
Not Available
3
Spring plate
CM017410
£0,71 Unit Price incl. VAT
4
Expansion plug
199190
£0,17 Unit Price incl. VAT
5
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
5
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
6
Self tapping screw
296141
£1,39 Unit Price incl. VAT
7
Elastic drift
463195
Not Available
17
Notched washer 6,6x11x0
012533
Not Available
19
Hex screw M6x22
031091
Not Available
19
screw torx
623920
£1,27 Unit Price incl. VAT
20
Washer
078307
Not Available
21
Spring plate M6
254485
£1,64 Unit Price incl. VAT
25
Left spoiler rear terminal
62212940EP
Not Available
25
Left spoiler rear terminal
62212940VG
£48,56 Unit Price incl. VAT
25
Left spoiler rear terminal
62212940M4
£9,41 Unit Price incl. VAT
25
Left spoiler rear terminal
6221294
Not Available
26
Right spoiler rear terminal
62213040VG
£48,56 Unit Price incl. VAT
26
Right spoiler rear terminal
62213040M4
Not Available
26
Right spoiler rear terminal
6221304
Not Available
26
Right spoiler rear terminal
62213040EP
Not Available
27
Cover
299557
£2,33 Unit Price incl. VAT
28
Cover
299558
£2,21 Unit Price incl. VAT
29
Cover
299559
£4,13 Unit Price incl. VAT
30
Spoiler cover
620556
Not Available

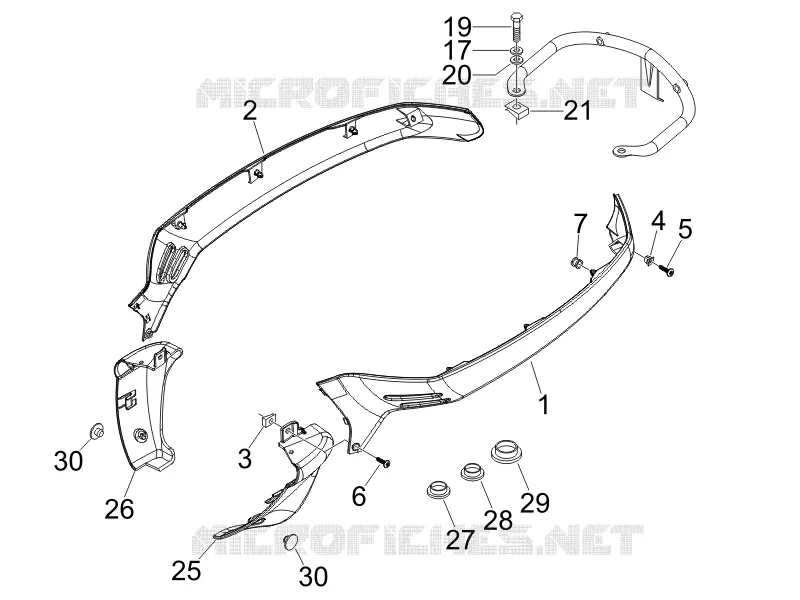

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
