Engine displacement
125
2
Model
LXV
3
Year
2013
4
Trim
LXV 4T ie E3
5
Parts Catalog
Wheel huosing - Mudguard
6
Parts Diagram
Parts Catalog
Brakes pipes - Calipers
by
Flywheel magneto cover - Oil filter
Wheel huosing - Mudguard
1
2
2
3
4
5
10
11
12
12
13
13
14
14
15
15
16
16
1
Front mudguard
66652800M5
£180,55 Unit Price incl. VAT
1
Front mudguard
66652800VG
Not Available
1
Front mudguard
65074700VG
Not Available
1
Front mudguard
650747
Not Available
1
Front mudguard
66652800M9
Not Available
1
Front mudguard
666528
£99,78 Unit Price incl. VAT
1
Front mudguard
66652800YR1
Not Available
1
Front mudguard
65074700YR1
Not Available
1
Front mudguard
66652800M4
£180,55 Unit Price incl. VAT
2
Spring plate
CM017410
£0,71 Unit Price incl. VAT
3
screw
015900
Not Available
4
Hose clamp
562919
£1,24 Unit Price incl. VAT
5
Rear mudguard
575079
Not Available
10
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
11
Spring washer
709047
£0,70 Unit Price incl. VAT
12
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
13
Self tapping screw 2,9x9,5
015727
Not Available
14
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
15
Cap
192598
£0,91 Unit Price incl. VAT
16
Crest
650748
£37,03 Unit Price incl. VAT

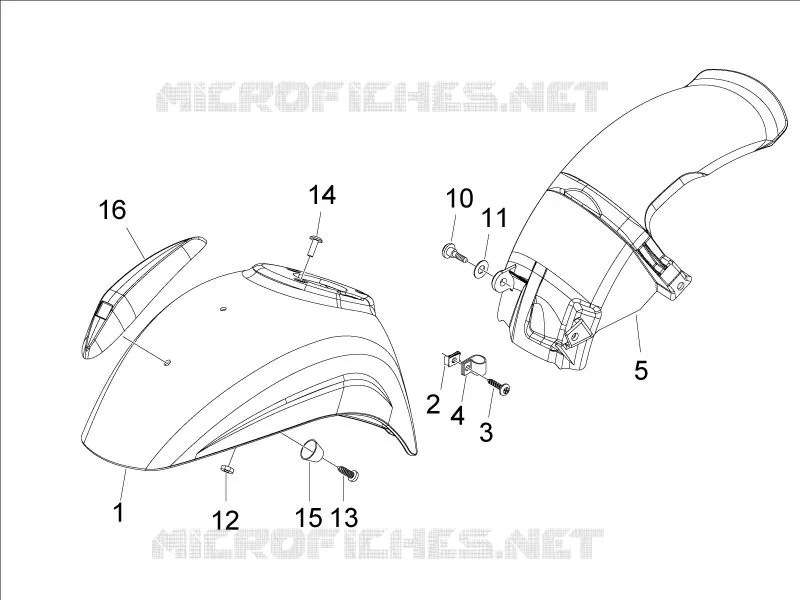

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
