Handlebars - Master cil. for LXV 15 from 2013

Free shipping for all orders to United Kingdom over £150! See conditions.

Handlebars - Master cil.

1

Handlebar with U.P.

624741

£161,57 Unit Price incl. VAT

2

Hex socket screw

655554

£1,97 Unit Price incl. VAT

3

Flat washer 18x10,2x2,5

267917

£0,36 Unit Price incl. VAT

4

Flat elastic washer with internal toothing 17x10,3x2

012543

Not Available

5

Nut M10

015330

Not Available

6

Grip

648552

£24,98 Unit Price incl. VAT

7

Left complete lever holder

648677

£75,38 Unit Price incl. VAT

8

Screw with nut

265249

£3,55 Unit Price incl. VAT

9

Brake lever

648115

£34,26 Unit Price incl. VAT

10

Spring

267948

£0,96 Unit Price incl. VAT

11

Throttle control sleeve assembly

66585300M4

Not Available

11

Throttle control sleeve assembly

66585300HF

£93,78 Unit Price incl. VAT

11

Throttle control sleeve assembly

66585300VG

£97,70 Unit Price incl. VAT

11

Throttle control sleeve assembly

66585300M5

Not Available

12

Grip, r.h.

648553

£24,98 Unit Price incl. VAT

13

Throttle opening transmission

665854

£47,41 Unit Price incl. VAT

14

Front brake hydraulic pump

CM080804

Not Available

15

(Heng Tong) Right brake lever

648378

£37,86 Unit Price incl. VAT

16

Throttle closing transmission

665855

Not Available

17

Gasket

127927

£1,04 Unit Price incl. VAT

18

screw

648336

£3,55 Unit Price incl. VAT

19

RH pump cover

667198

£42,43 Unit Price incl. VAT

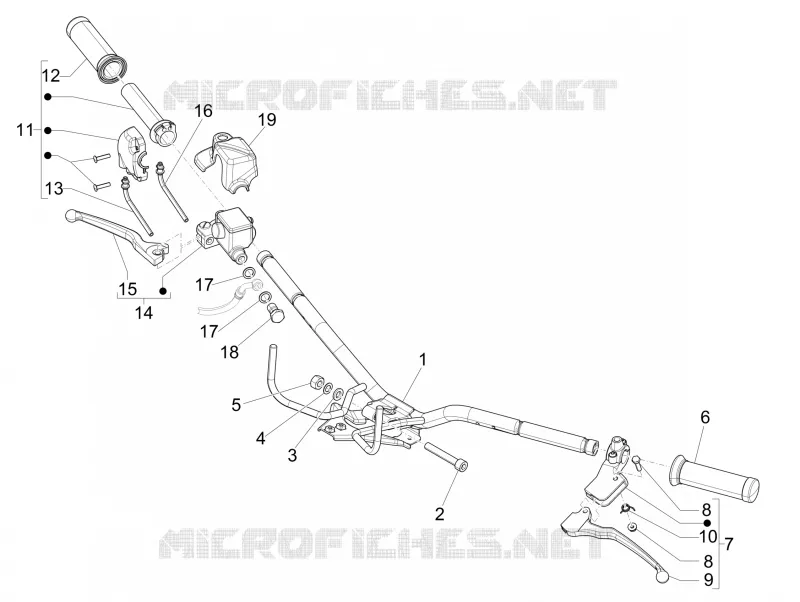

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
