1
Engine displacement
150
2
Model
PRIMAVERA
3
Year
2014
4
Trim
4T 3V ie Primavera
5
Parts Catalog

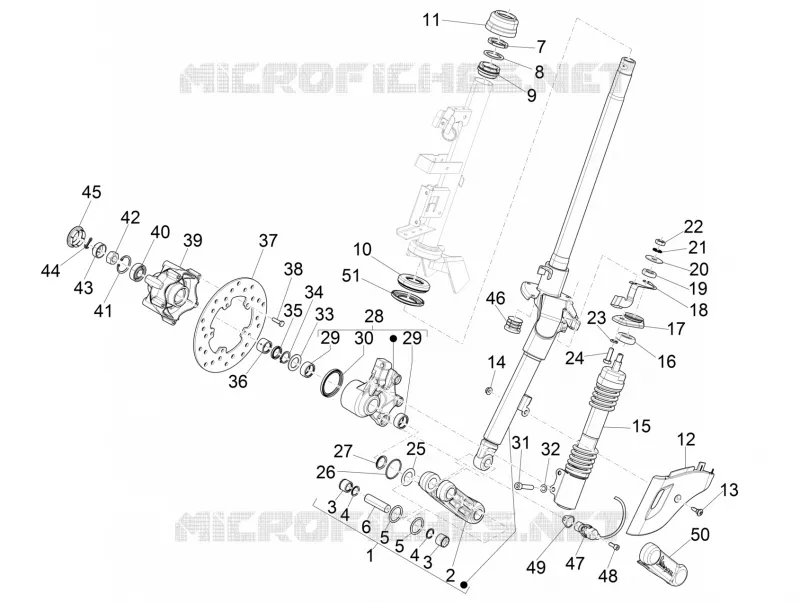

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Stand/s
by
Rear cover - Splash guard
Fork/steering tube - Steering bearing unit
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
5
4
3
3
2
1
1
Arm complete steering tube
1C0003975
£362,77 Unit Price incl. VAT
1
Arm complete steering tube
5A0005585
Not Available
2
Left suspension arm
6483975
£98,51 Unit Price incl. VAT
3
Roller cage
198513
£15,49 Unit Price incl. VAT
4
Gasket ring
119219
£1,58 Unit Price incl. VAT
5
Gasket
006731
Not Available
6
Piston pin
177451
£22,88 Unit Price incl. VAT
7
Steering tube ring nut
0111094
Not Available
8
Washer of the steering
0037514
Not Available
9
Upper thrust ring
65069345
£19,51 Unit Price incl. VAT
10
Lower steering bearing
65007545
£28,31 Unit Price incl. VAT
11
Bearing protection hood
665735
Not Available
12
Front suspension cover
1B000948
Not Available
13
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
14
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
15
Front shock absorber cpl.
5A000182
Not Available
16
Pad
174874
£3,66 Unit Price incl. VAT
17
Shock absorber connection bracket
601556
£31,18 Unit Price incl. VAT
18
Brake pipe support bracket
1C000327
Not Available
19
Pad
174085
£2,87 Unit Price incl. VAT
20
Washer
174088
£1,62 Unit Price incl. VAT
21
Washer
012535
Not Available
22
Nut
021210
Not Available
23
Spring washer 13,75x8,15x4,5
016408
Not Available
24
screw
031120
Not Available
25
Washer
177445
£1,62 Unit Price incl. VAT
26
O-ring
177408
£1,33 Unit Price incl. VAT
27
Ring
177521
£1,62 Unit Price incl. VAT
28
Pin and shock absorber support
1C0003265
£106,57 Unit Price incl. VAT
29
Drawn cap
177436
Not Available
30
Ring
177494
£4,73 Unit Price incl. VAT
31
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
32
Spring washer
709047
£0,70 Unit Price incl. VAT
33
Washer
177414
£1,62 Unit Price incl. VAT
34
Circlip
006422
Not Available
35
Gasket ring
177443
£3,55 Unit Price incl. VAT
36
Roller cage
177442
£7,33 Unit Price incl. VAT
37
Brake disc
56395R
£61,37 Unit Price incl. VAT
38
Hex screw
1C000291
£0,83 Unit Price incl. VAT
39
Front wheel hub
1C000383
Not Available
40
Bearing
177610
£20,51 Unit Price incl. VAT
41
Snap ring
006635
Not Available
42
Nut
021114
Not Available
43
Cap
177609
£3,76 Unit Price incl. VAT
44
Split pin
012789
Not Available
45
Cover
5A000238
£2,78 Unit Price incl. VAT
46
Cover
781276
£4,70 Unit Price incl. VAT
47
Speed sensor
5A000168
Not Available
48
Hex socket screw M6x16
709099
£0,14 Unit Price incl. VAT
49
Flat washer
668780
£4,99 Unit Price incl. VAT
50
Front suspension arm cover
649113
£22,19 Unit Price incl. VAT
51
Guard washer
1C001628
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
