Engine displacement
150
2
Model
PRIMAVERA
3
Year
2016
4
Trim
4T 3V ie Primavera
5
Parts Catalog
Reduction unit
6
Parts Diagram
Parts Catalog
Cylinder head cover
by
Driving pulley
Reduction unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Reducer cover with i.p.
B0162665
£336,89 Unit Price incl. VAT
2
Radial bearing 25x52x15
83056R
Not Available
3
Radial bearing 15x42x13
83026R
£5,51 Unit Price incl. VAT
4
Gasket ring 35x47x7
B015623
£7,26 Unit Price incl. VAT
5
Snap ring
006652
Not Available
6
Screw w/ flange M8x35
B016772
£1,24 Unit Price incl. VAT
7
Reduction unit cover gasket
B016456
£11,71 Unit Price incl. VAT
8
Hose clamp
CM002908
£1,27 Unit Price incl. VAT
9
Reduction unit breather pipe assembly
B018670
£12,76 Unit Price incl. VAT
10
Driven pulley shaft Z=15
B0169605
Not Available
11
Transmission shaft
4858915
Not Available
12
Rear wheel axle with U.P.
1A0017705
£171,92 Unit Price incl. VAT
13
Washer 8.2x12x1
485703
£0,96 Unit Price incl. VAT
14
Hex socket screw M8x12
269755
£1,36 Unit Price incl. VAT
15
Flanged hexagon head screw M8x50
1A001623
Not Available
16
Screw w/ flange M8x35
B016772
£1,24 Unit Price incl. VAT
17
Dust gaiter cover
1A000004
£4,38 Unit Price incl. VAT
18
Plate
1A001437
£4,55 Unit Price incl. VAT

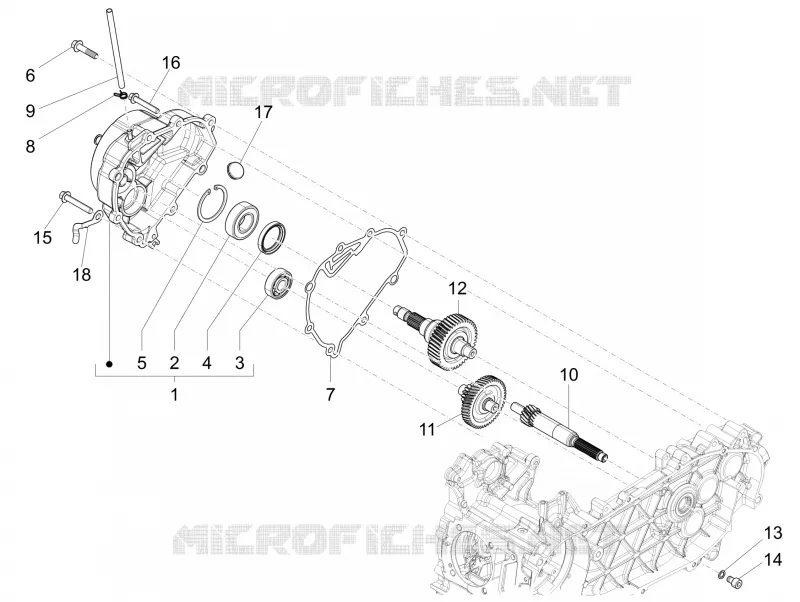

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
