1
Engine displacement
150
2
Model
PRIMAVERA
3
Year
2017
4
Trim
Primavera 4T 3V iGet E4 ABS
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Plates - Emblems
by
Locks

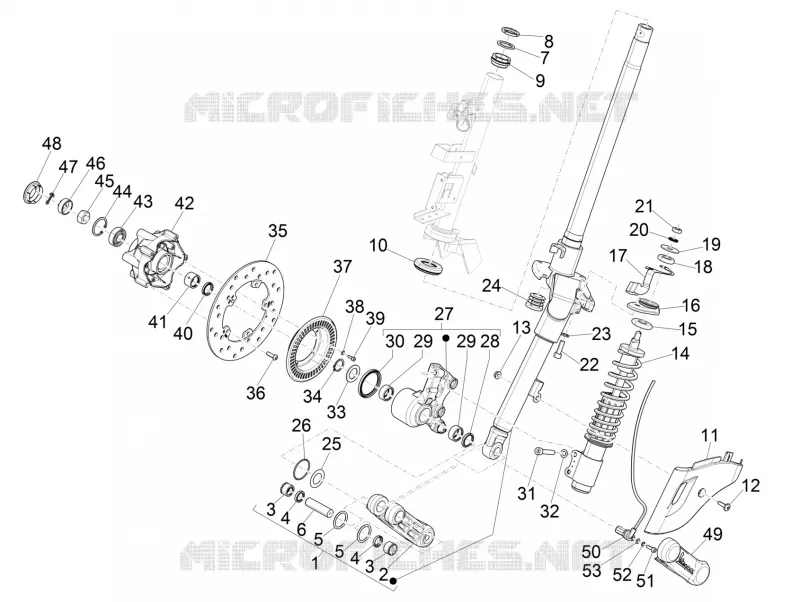

Fork/steering tube - Steering bearing unit
1
1
2
2
3
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
50
51
51
52
52
53
53
1
Arm complete steering tube
1C0003975
£362,77 Unit Price incl. VAT
2
Left suspension arm
6483975
£98,51 Unit Price incl. VAT
2
Suspension arm with I.P.
6514825
Not Available
3
Roller cage
198513
£15,49 Unit Price incl. VAT
4
Gasket ring
119219
£1,58 Unit Price incl. VAT
5
Gasket
006731
Not Available
6
Piston pin
177451
£22,88 Unit Price incl. VAT
7
Steering tube ring nut
0111094
Not Available
8
Washer of the steering
0037514
Not Available
9
Upper thrust ring
650693
Not Available
10
Lower steering bearing
650075
Not Available
11
Rear/front cover
1C001164
£10,00 Unit Price incl. VAT
12
Metric screw TBC
CM179302
£1,27 Unit Price incl. VAT
13
Nut
969224
£0,16 Unit Price incl. VAT
14
Front shock absorber
1C002497
Not Available
15
Pad
174874
£3,66 Unit Price incl. VAT
16
Shock absorber connection bracket
601556
£31,18 Unit Price incl. VAT
17
Brake pipe support bracket
1C000327
Not Available
18
Pad
174085
£2,87 Unit Price incl. VAT
19
Washer
174088
£1,62 Unit Price incl. VAT
20
Washer
012535
Not Available
21
Nut
021210
Not Available
22
screw
597150
£1,51 Unit Price incl. VAT
23
Spring washer 13,75x8,15x4,5
016408
Not Available
24
Cover
601026
£7,00 Unit Price incl. VAT
25
Washer
177445
£1,62 Unit Price incl. VAT
26
O-ring
177408
£1,33 Unit Price incl. VAT
27
Pin and shock absorber support
1C0023405
£122,06 Unit Price incl. VAT
28
Gasket ring
1C001969
£6,17 Unit Price incl. VAT
29
Drawn cap
177436
Not Available
30
Ring
177494
£4,73 Unit Price incl. VAT
31
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
32
Spring washer
709047
£0,70 Unit Price incl. VAT
33
Washer
177414
£1,62 Unit Price incl. VAT
34
Circlip
006422
Not Available
35
Brake disc
1C000110
£73,44 Unit Price incl. VAT
36
Hex socket screw M6x20
667152
£1,27 Unit Price incl. VAT
37
Front ABS tone wheel
1C000095
Not Available
38
screw
292500
Not Available
39
Spring washer
006964
Not Available
40
Gasket ring
177443
£3,55 Unit Price incl. VAT
41
Roller cage
177442
£7,33 Unit Price incl. VAT
42
Front wheel hub
669149
Not Available
43
Bearing
177610
£20,51 Unit Price incl. VAT
44
Snap ring
006635
Not Available
45
Nut
021114
Not Available
46
Cap
177609
£3,76 Unit Price incl. VAT
47
Split pin
012789
Not Available
48
Cover
1C000523
£9,90 Unit Price incl. VAT
49
Front suspension arm cover
561433
Not Available
50
ABS front sensor
1D0005255
Not Available
51
screw
975805
Not Available
52
Washer Ø5,3xØ10x0,5
006975
Not Available
53
Flat washer
669282
£2,36 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
