1
Engine displacement
50
2
Model
PRIMAVERA
3
Year
2015
4
Trim
Primavera 2T
5
Parts Catalog
Front glove-box - Knee-guard panel
6
Parts Diagram
Parts Catalog
Crankcase cover - Crankcase cooling
by
Flywheel magneto cover - Oil filter

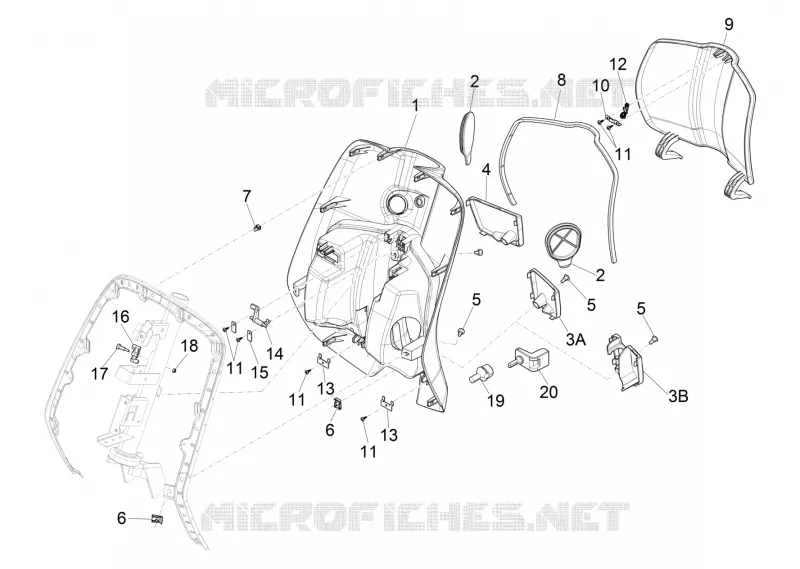

Front glove-box - Knee-guard panel
1
2
2
3A
3B
4
5
5
5
6
6
7
8
9
10
11
11
11
11
12
13
13
14
15
16
17
18
19
20
1
Painted front top box
1B003620000XN2
£224,11 Unit Price incl. VAT
1
Painted front top box
67361700DE
Not Available
1
Painted front top box
67361700MD
Not Available
1
Painted front top box
1B003620000T8
Not Available
1
Painted front top box
1B003620000DE
Not Available
1
Complete front top box
673617
Not Available
1
Painted front top box
1B003620000BR
£224,11 Unit Price incl. VAT
1
Painted front top box
1B003620000YR5
£224,11 Unit Price incl. VAT
1
Painted front top box
67361700R7
Not Available
1
Painted front top box
67361700XN2
Not Available
1
Painted front top box
1B003620000T9
Not Available
1
Painted front top box
67361700HH
Not Available
1
Painted front top box
1B003620000MD
Not Available
1
Painted front top box
67361700BR
Not Available
1
Painted front top box
1B003620000R7
£224,11 Unit Price incl. VAT
1
Painted front top box
67612500H7
£92,04 Unit Price incl. VAT
2
Plastic plug
657135
£7,69 Unit Price incl. VAT
3A
Lh pocket
675688000C
Not Available
3B
Lh pocket
1B0035230000C
£15,56 Unit Price incl. VAT
4
Rh pocket
675689000C
£15,61 Unit Price incl. VAT
5
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
5
screw
CM179202
£1,27 Unit Price incl. VAT
6
Spring plate M6
254485
£1,64 Unit Price incl. VAT
7
Gripper clip
D9004468091
£4,58 Unit Price incl. VAT
8
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
8
Gasket
CM006314
£10,37 Unit Price incl. VAT
9
Painted top box flap
67361800BR
Not Available
9
Painted top box flap
67361800XN2
£122,11 Unit Price incl. VAT
9
Painted top box flap
67361800MD
£122,11 Unit Price incl. VAT
9
Top case door
673618
Not Available
9
Painted top box flap
67361800HH
£97,02 Unit Price incl. VAT
9
Painted top box flap
67361800DE
£122,11 Unit Price incl. VAT
9
Painted top box flap
67361800T9
Not Available
9
Painted top box flap
67612600H7
£38,92 Unit Price incl. VAT
9
Painted top box flap
67361800T8
£122,11 Unit Price incl. VAT
9
Painted top box flap
67361800YR5
£122,11 Unit Price incl. VAT
9
Painted top box flap
67361800R7
Not Available
10
Square
252420
£3,88 Unit Price incl. VAT
11
Self tapping screw
297498
£0,60 Unit Price incl. VAT
12
Spring
577005
Not Available
13
Door fixing bracket
257614
£1,72 Unit Price incl. VAT
14
Lockup hook door
675478
£1,91 Unit Price incl. VAT
15
Plate
675490
£2,72 Unit Price incl. VAT
16
Lever assembly
675489
£6,60 Unit Price incl. VAT
17
Special screw
299972
£1,14 Unit Price incl. VAT
18
Self locking nut
577620
£0,97 Unit Price incl. VAT
19
Cover
581412
£4,00 Unit Price incl. VAT
20
Top box internal cover
1B000487
£11,63 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
