1
Engine displacement
50
2
Model
PRIMAVERA
3
Year
2013
4
Trim
Primavera 4T-4V
5
Parts Catalog

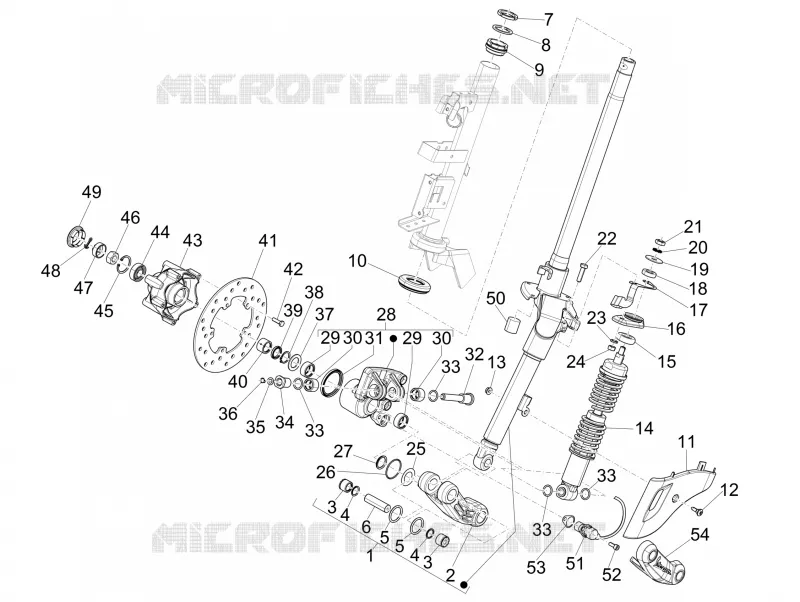

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Remote control switches - Battery - Horn
by
Plates - Emblems
Fork/steering tube - Steering bearing unit
1
2
3
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
30
31
32
33
33
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
1
Steering tube complete with arm
6736595
£560,87 Unit Price incl. VAT
2
Left suspension arm
6691315
£105,14 Unit Price incl. VAT
3
Roller cage
198513
£15,49 Unit Price incl. VAT
4
Gasket ring
119219
£1,58 Unit Price incl. VAT
5
Gasket
006731
Not Available
6
Piston pin
177451
£22,88 Unit Price incl. VAT
7
Steering tube ring nut
0111094
Not Available
8
Washer of the steering
0037514
Not Available
9
Upper thrust ring
650693
Not Available
10
Lower steering bearing
650075
Not Available
11
Rear/front cover
1C001164
£10,00 Unit Price incl. VAT
11
Front suspension cover
1B000948
Not Available
12
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
13
Nut
969224
£0,16 Unit Price incl. VAT
14
Complete front shock absorber
1C000837R
£167,76 Unit Price incl. VAT
15
Pad
174874
£3,66 Unit Price incl. VAT
16
Bracket
668767
Not Available
17
Brake pipe support bracket
1C000327
Not Available
18
Pad
174085
£2,87 Unit Price incl. VAT
19
Washer
174088
£1,62 Unit Price incl. VAT
20
Washer
012535
Not Available
21
Nut
021210
Not Available
22
Hex screw M8x30
031122
Not Available
23
Spring washer 13,75x8,15x4,5
016408
Not Available
24
Nut M8x6,5
020108
Not Available
25
Washer
177445
£1,62 Unit Price incl. VAT
26
O-ring
177408
£1,33 Unit Price incl. VAT
27
Ring
177521
£1,62 Unit Price incl. VAT
28
Pin and shock absorber support
6691285
£92,38 Unit Price incl. VAT
29
Drawn cap
177436
Not Available
30
Roller cage
1C000167
£14,81 Unit Price incl. VAT
31
Ring
177494
£4,73 Unit Price incl. VAT
32
Threaded pin
1C000500
£28,90 Unit Price incl. VAT
33
Gasket ring
482302
£0,97 Unit Price incl. VAT
34
Threaded bush
1C000499
£25,24 Unit Price incl. VAT
35
Washer
847183
£1,27 Unit Price incl. VAT
36
Safety washer
006408
Not Available
37
Washer
177414
£1,62 Unit Price incl. VAT
38
Circlip
006422
Not Available
39
Gasket ring
177443
£3,55 Unit Price incl. VAT
40
Roller cage
177442
£7,33 Unit Price incl. VAT
41
Brake disc
56395R
£61,37 Unit Price incl. VAT
42
Hex screw
1C000291
£0,83 Unit Price incl. VAT
43
Front wheel hub
1C000383
Not Available
44
Bearing
177610
£20,51 Unit Price incl. VAT
45
Snap ring
006635
Not Available
46
Nut
021114
Not Available
47
Cap
177609
£3,76 Unit Price incl. VAT
48
Split pin
012789
Not Available
49
Cover
1C000523
£9,90 Unit Price incl. VAT
50
Cover
601026
£7,00 Unit Price incl. VAT
51
Speed sensor
1D0007655
£116,89 Unit Price incl. VAT
52
Hex socket screw M6x16
709099
£0,14 Unit Price incl. VAT
53
Flat washer
668780
£4,99 Unit Price incl. VAT
54
Swinging arm cover
1C000835
£22,55 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
