1
Engine displacement
125
2
Model
S
3
Year
2011
4
Trim
S 4T 2V E3
5
Parts Catalog
Driven pulley
6
Parts Diagram
Parts Catalog
Wheel huosing - Mudguard
by
Selectors - Switches - Buttons

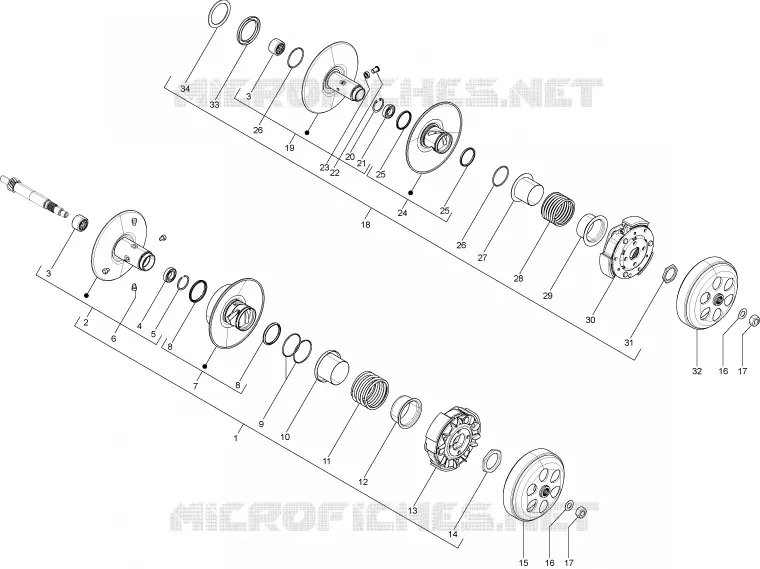

Driven pulley
1
2
3
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
16
17
17
18
19
20
21
22
23
24
25
25
26
26
27
28
29
30
31
32
33
34
1
Clutch driven pulley assy.
CM162401
£220,87 Unit Price incl. VAT
2
Fixed driven half pulley
830580
£97,84 Unit Price incl. VAT
3
Roller cage 20x29x18
82518R
£29,20 Unit Price incl. VAT
4
Bearing 17x30x7
82753R
£21,72 Unit Price incl. VAT
5
Snap ring
483226
£1,87 Unit Price incl. VAT
6
Guide pin L=12,5
828717
£1,50 Unit Price incl. VAT
7
Adjustable pulley, half
879002
£75,44 Unit Price incl. VAT
8
Gasket ring
431089
£8,58 Unit Price incl. VAT
9
Gasket
430585
£0,88 Unit Price incl. VAT
10
Pulley side cap
4310935
£32,24 Unit Price incl. VAT
11
Variator spring
872877
£14,56 Unit Price incl. VAT
12
Clutch side cap
487936
£8,76 Unit Price incl. VAT
13
Complete centrifugal clutch assembly
CM1612015
£94,16 Unit Price incl. VAT
14
Ring nut
433232
£13,28 Unit Price incl. VAT
15
Clutch drum
8440494
£74,72 Unit Price incl. VAT
16
Flat washer 22x12,1x1
274246
£1,00 Unit Price incl. VAT
17
Nut M12x1.25
486324
£1,04 Unit Price incl. VAT
18
Clutch driven pulley assy.
CM163701
£315,01 Unit Price incl. VAT
19
Fixed driven half pulley
880513
£122,68 Unit Price incl. VAT
20
Ball bearing
880512
£15,17 Unit Price incl. VAT
21
Snap ring
006628
Not Available
22
Pin
431092
Not Available
23
Roller
431091
£2,78 Unit Price incl. VAT
24
Complete movable half-driven pulley
880538
Not Available
25
Gasket ring
289950
£10,18 Unit Price incl. VAT
26
Gasket
289840
£2,44 Unit Price incl. VAT
27
Pulley side cap
880539
£21,85 Unit Price incl. VAT
28
Variator spring
B013304
£27,70 Unit Price incl. VAT
29
Clutch side cap
880543
£22,02 Unit Price incl. VAT
30
Complete centrifugal clutch assembly
CM163801
Not Available
31
Ring nut
289955
£13,28 Unit Price incl. VAT
32
Clutch drum
880623
£65,57 Unit Price incl. VAT
33
Spring seat
880541
£13,37 Unit Price incl. VAT
34
Sliding washer
880540
£12,94 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
