1
Engine displacement
125
2
Model
S
3
Year
2015
4
Trim
S 4T 3V E3 ie
5
Parts Catalog
Front shield
6
Parts Diagram
Parts Catalog
Driven pulley
by
Air filter
Front shield
1
2
3
4
5
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
18
19
19
20
21
22
23
1
Right-hand shield edge
622188
£38,70 Unit Price incl. VAT
2
Left-hand shield edge
622187
£38,70 Unit Price incl. VAT
3
Butt strap DX
299965
£3,17 Unit Price incl. VAT
4
Butt strap SX
299964
£3,17 Unit Price incl. VAT
5
Plug screw
268596
£0,62 Unit Price incl. VAT
6
Spring plate
CM017403
£0,90 Unit Price incl. VAT
7
Painted steering cover
67532340ND
£132,98 Unit Price incl. VAT
7
Painted steering cover
67532340AI
£132,98 Unit Price incl. VAT
7
Painted steering cover
67532300VL
Not Available
7
Painted steering cover
67532300R7
£117,60 Unit Price incl. VAT
7
Painted steering cover
67532320EZ
Not Available
7
Painted steering cover
65488300T4
Not Available
7
Painted steering cover
65488320NS
Not Available
7
Steering column cover
67532320L3
£132,98 Unit Price incl. VAT
7
Painted steering cover
67532300AU
£132,98 Unit Price incl. VAT
7
Painted steering cover
67532320AT
£132,98 Unit Price incl. VAT
7
Painted steering cover
67532340GP
£132,98 Unit Price incl. VAT
7
Steering column cover
675323
£84,59 Unit Price incl. VAT
7
Painted steering cover
67532340BR
Not Available
8
Expansion plug
199190
£0,17 Unit Price incl. VAT
9
Self tapping screw L=20 mm
267958
£0,76 Unit Price incl. VAT
10
Grid
675325
£21,23 Unit Price incl. VAT
11
Screw d3,5x9,5
008432
Not Available
12
Left lower bracket of the leg shield back plate fix
654899
£15,56 Unit Price incl. VAT
13
Right lower bracket of the leg shield back plate fix
654913
£15,56 Unit Price incl. VAT
14
Rubber w/ insert M4
AP8144564
£2,52 Unit Price incl. VAT
15
screw
018544
Not Available
16
Self tapping screw
297498
£0,60 Unit Price incl. VAT
17
Flange
675324
£46,15 Unit Price incl. VAT
18
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
19
Spring plate
CM017410
£0,71 Unit Price incl. VAT
20
Number plate holder
781059
£21,55 Unit Price incl. VAT
21
Number plate carrier
781129
£7,28 Unit Price incl. VAT
22
Self tapping screw
297498
£0,60 Unit Price incl. VAT
23
Steering column cover
654883
£98,63 Unit Price incl. VAT
23
Painted steering cover
65488320L3
Not Available
23
Painted steering cover
65488320AT
£133,75 Unit Price incl. VAT

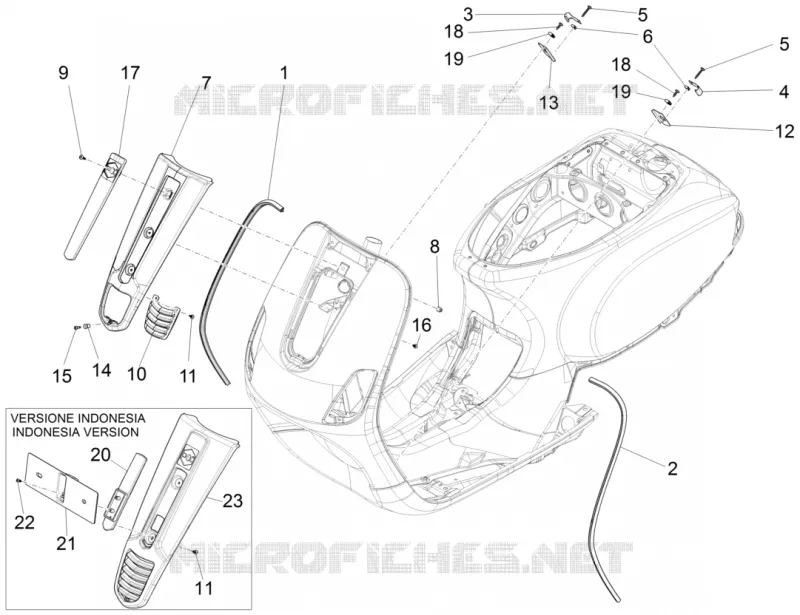

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
