Parts Catalog
Fork/steering tube - Steering bearing unit
6

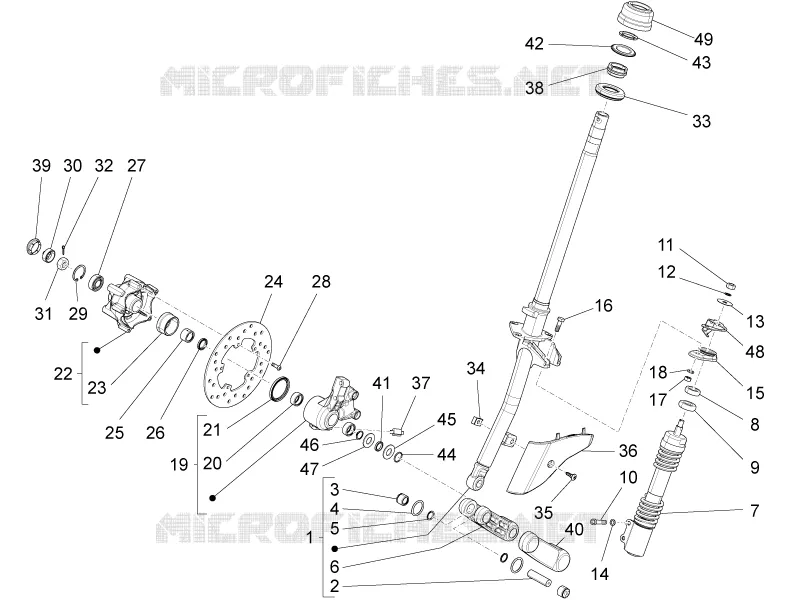

Parts Diagram
Parts Catalog
Fuel tank
by
Remote control switches - Battery - Horn
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
1
Steering tube complete with arm
6501315
£311,69 Unit Price incl. VAT
2
Piston pin
177451
£22,88 Unit Price incl. VAT
3
Roller cage
198513
£15,49 Unit Price incl. VAT
4
Gasket
006731
Not Available
5
Gasket ring
119219
£1,58 Unit Price incl. VAT
6
Complete rear suspension arm
651482
Not Available
7
Front shock absorber
665766
£62,34 Unit Price incl. VAT
8
Pad
174085
£2,87 Unit Price incl. VAT
9
Pad
174874
£3,66 Unit Price incl. VAT
10
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
11
Nut
021210
Not Available
12
Washer
174088
£1,62 Unit Price incl. VAT
13
Washer
012535
Not Available
14
Spring washer
709047
£0,70 Unit Price incl. VAT
15
Shock absorber connection bracket
601556
£31,18 Unit Price incl. VAT
16
screw
031120
Not Available
17
Nut
021210
Not Available
18
Spring washer 13,75x8,15x4,5
016408
Not Available
19
Not available
5602865
£182,66 Unit Price incl. VAT
20
Drawn cap
177436
Not Available
21
Ring
177494
£4,73 Unit Price incl. VAT
22
Front wheel hub
560284
Not Available
23
Ring gear counts Km socket
267818
£33,11 Unit Price incl. VAT
24
Brake disc
56395R
£61,37 Unit Price incl. VAT
25
Roller cage
177442
£7,33 Unit Price incl. VAT
26
Gasket ring
177443
£3,55 Unit Price incl. VAT
27
Bearing
177610
£20,51 Unit Price incl. VAT
28
Hex socket screw M6x20
271147
Not Available
29
Snap ring
006635
Not Available
30
Cap
177609
£3,76 Unit Price incl. VAT
31
Nut
021114
Not Available
32
Split pin
012789
Not Available
33
Lower steering bearing
6500754
Not Available
34
Spring plate M6
254485
£1,64 Unit Price incl. VAT
35
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
36
Suspension cover
654268
£12,49 Unit Price incl. VAT
37
Pinion
267819
£3,60 Unit Price incl. VAT
38
Upper thrust ring
6506934
Not Available
39
Axle plug
665657
£3,40 Unit Price incl. VAT
40
Front suspension arm cover
649113
£22,19 Unit Price incl. VAT
41
Ring
177521
£1,62 Unit Price incl. VAT
42
Washer of the steering
0037514
Not Available
43
Steering tube ring nut
0111094
Not Available
44
O-ring
177408
£1,33 Unit Price incl. VAT
45
Washer
177445
£1,62 Unit Price incl. VAT
46
Circlip
006422
Not Available
47
Washer
177414
£1,62 Unit Price incl. VAT
48
Brake pipe support bracket
665701
£13,09 Unit Price incl. VAT
49
Bearing protection hood
665735
Not Available
