Engine displacement
150
2
Model
S
3
Year
2009
4
Trim
S 4T
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Swinging arm
by
Rear suspension - Shock absorber/s
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
1
KAYABA cpl. front shock absorber
649458
Not Available
2
Washer
012535
Not Available
3
Nut
021210
Not Available
4
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
5
Pad
174085
£2,87 Unit Price incl. VAT
6
Washer
174088
£1,62 Unit Price incl. VAT
7
Pad
174874
£3,66 Unit Price incl. VAT
8
Spring washer
709047
£0,70 Unit Price incl. VAT
9
Bracket
273693
£16,19 Unit Price incl. VAT
10
screw
031120
Not Available
11
Spring washer 13,75x8,15x4,5
016408
Not Available
12
Nut M8x6,5
020108
Not Available
13
Arm complete steering tube
648413
Not Available
14
Left suspension arm
6483975
£98,51 Unit Price incl. VAT
15
Roller cage
198513
£15,49 Unit Price incl. VAT
16
Gasket
006731
Not Available
17
Gasket ring
119219
£1,58 Unit Price incl. VAT
18
Piston pin
177451
£22,88 Unit Price incl. VAT
19
Lower steering bearing
CM061304
Not Available
20
Upper thrust ring
CM061303
Not Available
21
Steering tube ring nut
011109
Not Available
22
Washer of the steering
003751
Not Available
23
Suspension cover
654268
£12,49 Unit Price incl. VAT
24
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
25
Spring plate M6
254485
£1,64 Unit Price incl. VAT
26
Front suspension arm cover
561433
Not Available
27
Nut
021114
Not Available
28
Cover
092517
Not Available
29
Cap
177609
£3,76 Unit Price incl. VAT
30
Split pin
012789
Not Available
31
Front wheel hub
560284
Not Available
32
Brake disc
56395R
£61,37 Unit Price incl. VAT
33
Snap ring
006635
Not Available
34
Bearing
177610
£20,51 Unit Price incl. VAT
35
Hex socket screw M6x20
271147
Not Available
36
Front wheel hub
560284
Not Available
37
Ring gear counts Km socket
267818
£33,11 Unit Price incl. VAT
38
Roller cage
177442
£7,33 Unit Price incl. VAT
39
Gasket ring
177443
£3,55 Unit Price incl. VAT
40
O-ring
177408
£1,33 Unit Price incl. VAT
41
Not available
560286
Not Available
42
Ring
177494
£4,73 Unit Price incl. VAT
43
Drawn cap
177436
Not Available
44
Pinion
267819
£3,60 Unit Price incl. VAT
45
Washer
177414
£1,62 Unit Price incl. VAT
46
Ring
177521
£1,62 Unit Price incl. VAT
47
Washer
177445
£1,62 Unit Price incl. VAT
48
Washer Ø5,3xØ10x0,5
006975
Not Available
49
screw M5x16
031058
Not Available
50
Circlip
006422
Not Available

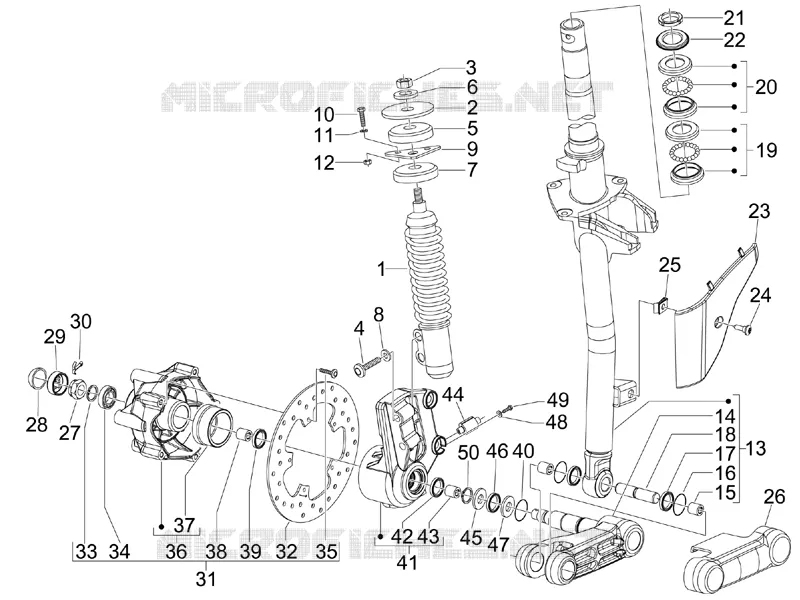

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
