Engine displacement
150
2
Model
S
3
Year
2013
4
Trim
S 4T 3V ie
5
Parts Catalog
Flywheel magneto cover - Oil filter
6

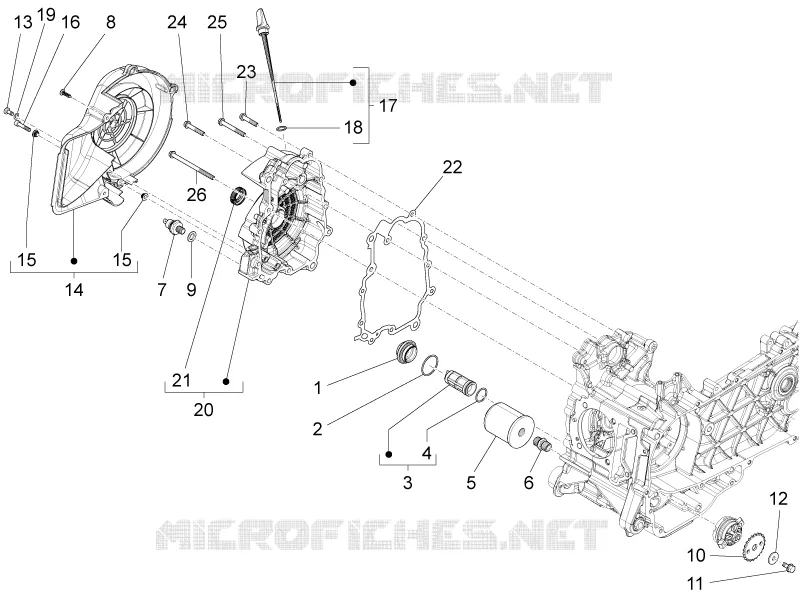

Parts Diagram
Parts Catalog
Front wheel
by
Meter combination - Cruscotto
Flywheel magneto cover - Oil filter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
1
Oil filter plug
B015456
Not Available
2
O-ring 31,47x1,78
B015989
Not Available
3
Intake oil filter
B015454
£2,17 Unit Price incl. VAT
4
O-ring 20,35x1,78
288474
£0,52 Unit Price incl. VAT
5
Oil filter
82635R
Not Available
6
Special screw
B015455
£8,26 Unit Price incl. VAT
7
Oil pressure sensor
641541
Not Available
8
Self tapping screw L=20 mm
267958
£0,76 Unit Price incl. VAT
9
Washer 10,5x17x1,5
B015988
Not Available
10
Oil pump gear
287913
£8,52 Unit Price incl. VAT
11
Screw w/ flange M6x14
1A000323
Not Available
12
Belleville spring
B015991
£1,24 Unit Price incl. VAT
13
Metric screw M5x20
1A000320
Not Available
14
Complete flywheel side duct
B017660
Not Available
14
Complete flywheel side duct
1A001451
Not Available
15
Bushing
B015908
£6,92 Unit Price incl. VAT
16
Hex socket screw M5x25
B015981
Not Available
17
Oil dipstick
B017891
£8,63 Unit Price incl. VAT
18
O-ring
479986
Not Available
19
Plain washer 5,4x10x0,8
003055
Not Available
20
Complete flywheel cover
8798545
£148,94 Unit Price incl. VAT
21
Gasket ring 14x28x7
B015692
Not Available
22
Flywheel housing cover gasket
877671
£11,95 Unit Price incl. VAT
23
Screw w/ flange M6x30
B015964
Not Available
24
TCIC Screw M5x16
1A000321
Not Available
25
Screw w/ flange M6x50
B015966
Not Available
26
Screw w/ flange M6x90
1A000318
Not Available
