1
Engine displacement
50
2
Model
S
3
Year
2007
4
Trim
S 2T 25 Km/h
5
Parts Catalog

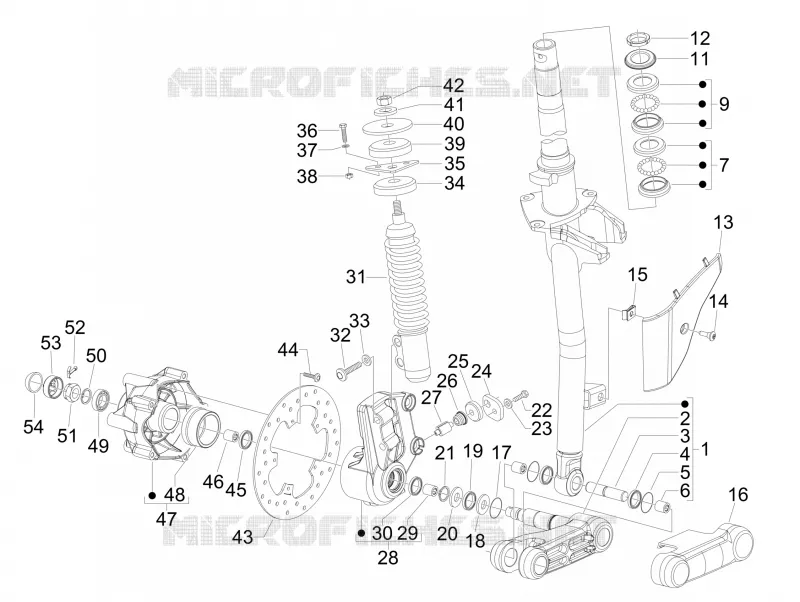

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Swinging arm
by
Rear suspension - Shock absorber/s
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
9
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
1
Arm complete steering tube
648413
Not Available
2
Left suspension arm
6483975
£98,51 Unit Price incl. VAT
3
Piston pin
177451
£22,88 Unit Price incl. VAT
4
Gasket ring
119219
£1,58 Unit Price incl. VAT
5
Gasket
006731
Not Available
6
Roller cage
198513
£15,49 Unit Price incl. VAT
7
Lower steering bearing
CM061304
Not Available
9
Upper thrust ring
CM061303
Not Available
11
Washer of the steering
003751
Not Available
12
Steering tube ring nut
011109
Not Available
13
Suspension cover
654268
£12,49 Unit Price incl. VAT
14
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
15
Spring plate M6
254485
£1,64 Unit Price incl. VAT
16
Front suspension arm cover
561433
Not Available
17
O-ring
177408
£1,33 Unit Price incl. VAT
18
Washer
177445
£1,62 Unit Price incl. VAT
19
Ring
177521
£1,62 Unit Price incl. VAT
20
Washer
177414
£1,62 Unit Price incl. VAT
21
Circlip
006422
Not Available
22
screw M5x16
031058
Not Available
23
Washer Ø5,3xØ10x0,5
006975
Not Available
24
Plate
269118
Not Available
25
Pad
266841
£1,86 Unit Price incl. VAT
26
Maintenance
564053
Not Available
27
Pinion
267819
£3,60 Unit Price incl. VAT
28
Not available
560286
Not Available
29
Drawn cap
177436
Not Available
30
Ring
177494
£4,73 Unit Price incl. VAT
31
Complete front shock absorber
56409R
Not Available
32
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
33
Spring washer
709047
£0,70 Unit Price incl. VAT
34
Pad
174874
£3,66 Unit Price incl. VAT
35
Bracket
273693
£16,19 Unit Price incl. VAT
36
screw
031120
Not Available
37
Spring washer 13,75x8,15x4,5
016408
Not Available
38
Nut M8x6,5
020108
Not Available
39
Pad
174085
£2,87 Unit Price incl. VAT
40
Washer
012535
Not Available
41
Washer
174088
£1,62 Unit Price incl. VAT
42
Nut
021210
Not Available
43
Brake disc
56395R
£61,37 Unit Price incl. VAT
44
Hex socket screw M6x20
271147
Not Available
45
Gasket ring
177443
£3,55 Unit Price incl. VAT
46
Roller cage
177442
£7,33 Unit Price incl. VAT
47
Front wheel hub
560284
Not Available
48
Ring gear counts Km socket
267818
£33,11 Unit Price incl. VAT
49
Bearing
177610
£20,51 Unit Price incl. VAT
50
Snap ring
006635
Not Available
51
Nut
021114
Not Available
52
Split pin
012789
Not Available
53
Cap
177609
£3,76 Unit Price incl. VAT
54
Cover
092517
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
