Crankcase-Oil pump
6
Parts Diagram
Parts Catalog
Speed variator, assy.
by
Carburettor
Crankcase-Oil pump
1
3
4
5
5
6
7
8
9
9
9
10
11
12
13
14
15
16
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
37
38
39
40
41
42
43
44
45
45
46
47
48
49
50
1
Crankcase assembly
ODN00G03012631
Not Available
2
Crankcase gasket
ODN00G03004031
Not Available
3
Silent block
ODN00G02201711
Not Available
4
Silent block
ODN00G01800141
Not Available
5
Bushing
ODN00G03001021
Not Available
6
Side cover
ODN00G03000851
Not Available
7
Cover gasket
ODN00G06401031
Not Available
8
Screw
ODN00G03900821
Not Available
9
screw
ODN00G03000211
Not Available
10
Crankcase cover gasket
ODN00G03004321
Not Available
11
Case cover
ODN00G06406061
Not Available
12
Plate
ODN00G04406991
Not Available
13
Screw
ODN00G03000081
Not Available
14
Ring
ODN00G03000621
Not Available
15
Screw
ODN00G03000131
Not Available
16
Washer
ODN00G03000121
Not Available
17
Breather tube connect.
ODN00G03000601
Not Available
18
Engine breather tube
ODN00G03000651
Not Available
19
Self locking nut 8m125
ODN00023108000
Not Available
20
Sec. screw
ODN00G03001091
Not Available
21
Sec. screw
ODN00G03002091
Not Available
22
Sec. screw
ODN00G03003091
Not Available
23
Intake manifold valve
ODN00G02505061
Not Available
24
Brake shoe shaft
ODN00G01200151
Not Available
25
Packing
ODN00G02501051
Not Available
26
Reed valve bracket
ODN00G02501641
Not Available
27
Screw
ODN00G05001061
Not Available
28
Screw
ODN00000012420
Not Available
29
Plain washer
ODN00000031040
Not Available
30
Washer
ODN00000033040
Not Available
31
Oil pump assembly
ODN00G03707021
Not Available
32
Screw
ODN00000012515
Not Available
33
Spring clamp
ODN00D03700131
Not Available
34
Flange
ODN00G03701181
Not Available
35
Ring nut
ODN00G03601871
Not Available
36
Spring clamp
ODN00H00400501
Not Available
37
Self tapping screw
ODN00011062000
Not Available
38
Oil tube
ODN00G03702121
Not Available
39
Hose clamp
ODN00H03800451
Not Available
40
Protection
ODN00G06400141
Not Available
41
Joint
ODN00G03701031
Not Available
42
pipe
ODN00D00440321
Not Available
43
Oil tube
ODN00G03702221
Not Available
44
Cooling hood
ODN00G03006981
Not Available
45
Sec. screw 6x16
ODN00G03600991
Not Available
46
Fan cover
ODN00G03004151
Not Available
47
Flange
ODN00G03702181
Not Available
48
Sec. screw
ODN00F05000061
Not Available
49
Flange
ODN00G03701141
Not Available
50
Ring
ODN00H03700511
Not Available

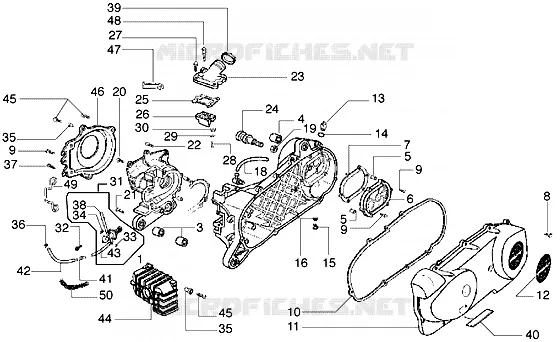

Find the detailed Crankcase-Oil pump GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
