Engine displacement
150
2
Model
SPRINT
3
Year
2015
4
Trim
Sprint 4T 3V ie
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Front shield
by
Swinging arm
Fork/steering tube - Steering bearing unit
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
30
31
32
33
33
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
1
Steering tube complete with arm
6736595
£560,87 Unit Price incl. VAT
2
Left suspension arm
6691315
£105,14 Unit Price incl. VAT
3
Roller cage
198513
£15,49 Unit Price incl. VAT
4
Gasket ring
119219
£1,58 Unit Price incl. VAT
5
Gasket
006731
Not Available
6
Piston pin
177451
£22,88 Unit Price incl. VAT
7
Steering tube ring nut
0111094
Not Available
8
Washer of the steering
0037514
Not Available
9
Upper thrust ring
65069345
£19,51 Unit Price incl. VAT
10
Lower steering bearing
650075
Not Available
11
Front suspension cover
673645
Not Available
12
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
13
Nut
969224
£0,16 Unit Price incl. VAT
14
Front shock absorber cpl.
1C000843R
£172,92 Unit Price incl. VAT
15
Pad
174874
£3,66 Unit Price incl. VAT
16
Bracket
668767
Not Available
17
Brake pipe support bracket
1C000327
Not Available
18
Pad
174085
£2,87 Unit Price incl. VAT
19
Washer
174088
£1,62 Unit Price incl. VAT
20
Washer
012535
Not Available
21
Nut
021210
Not Available
22
screw
597150
£1,51 Unit Price incl. VAT
23
Spring washer 13,75x8,15x4,5
016408
Not Available
24
Bearing protection hood
665735
Not Available
25
Washer
177445
£1,62 Unit Price incl. VAT
26
O-ring
177408
£1,33 Unit Price incl. VAT
27
Ring
177521
£1,62 Unit Price incl. VAT
28
Pin and shock absorber support
6691285
£92,38 Unit Price incl. VAT
29
Drawn cap
177436
Not Available
30
Roller cage
1C000167
£14,81 Unit Price incl. VAT
31
Ring
177494
£4,73 Unit Price incl. VAT
32
Threaded pin
1C000500
£28,90 Unit Price incl. VAT
33
Circlip
006422
Not Available
34
Threaded bush
1C000499
£25,24 Unit Price incl. VAT
35
Washer
847183
£1,27 Unit Price incl. VAT
36
Washer
177414
£1,62 Unit Price incl. VAT
37
Gasket ring
482302
£0,97 Unit Price incl. VAT
38
Safety washer
006408
Not Available
39
Gasket ring
177443
£3,55 Unit Price incl. VAT
40
Roller cage
177442
£7,33 Unit Price incl. VAT
41
Brake disc
5A000183
£68,82 Unit Price incl. VAT
41
Brake disc
56395R
£61,37 Unit Price incl. VAT
42
Hex screw
1C000291
£0,83 Unit Price incl. VAT
43
Front wheel hub
1C000383
Not Available
44
Bearing
177610
£20,51 Unit Price incl. VAT
45
Snap ring
006635
Not Available
46
Nut
021114
Not Available
47
Cap
177609
£3,76 Unit Price incl. VAT
48
Split pin
012789
Not Available
49
Cover
5A000238
£2,78 Unit Price incl. VAT
50
Cover
601026
£7,00 Unit Price incl. VAT
51
Speed sensor for odometer
5A0001685
Not Available
52
Hex socket screw M6x16
709099
£0,14 Unit Price incl. VAT
53
Flat washer
668780
£4,99 Unit Price incl. VAT
54
Swivel arm cover
1C0008405
Not Available

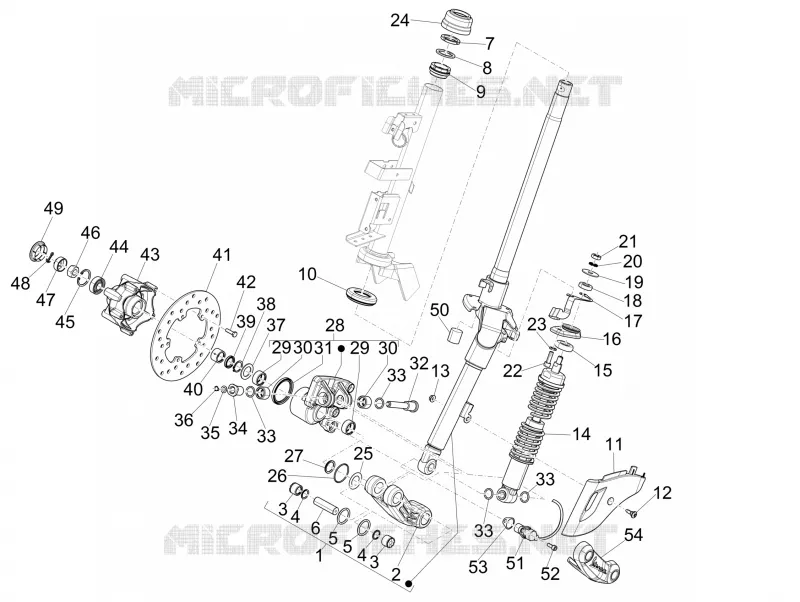

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
