Swinging arm for Beverly from 2006

Free shipping for all orders to United Kingdom over £150! See conditions.

Swinging arm

1

Swinging arm

597503

Not Available

1

COMPLETE CHASSIS SIDE SWINGING ARM

56335R

Not Available

2

Roller cage

56127R

£9,07 Unit Price incl. VAT

3

Spacer L=183 mm

CM067801

£17,98 Unit Price incl. VAT

4

Swinging arm

598799

Not Available

5

Roller cage

597374

Not Available

6

Spring

597490

£7,63 Unit Price incl. VAT

7

Bracket

600537

£125,33 Unit Price incl. VAT

8

Silent-block

272750

£44,05 Unit Price incl. VAT

9

Bush

273460

£0,98 Unit Price incl. VAT

10

Spacer L=228 mm

CM067803

£16,27 Unit Price incl. VAT

11

Circlip

006416

Not Available

12

Nut

564878

£1,06 Unit Price incl. VAT

13

Hex socket screw

597893

£1,24 Unit Price incl. VAT

14

Threaded bush

597774

£30,86 Unit Price incl. VAT

15

screw

597081

£13,28 Unit Price incl. VAT

16

Hex socket screw

597080

£26,93 Unit Price incl. VAT

17

Nut

564878

£1,06 Unit Price incl. VAT

18

Nut m22x2 h=8

564611

£4,70 Unit Price incl. VAT

19

Hex screw M10x202

271807

£10,52 Unit Price incl. VAT

20

Self locking nut M10

232108

Not Available

21

Self locking nut M10

231370

£1,13 Unit Price incl. VAT

22

Self locking nut M10

002440

Not Available

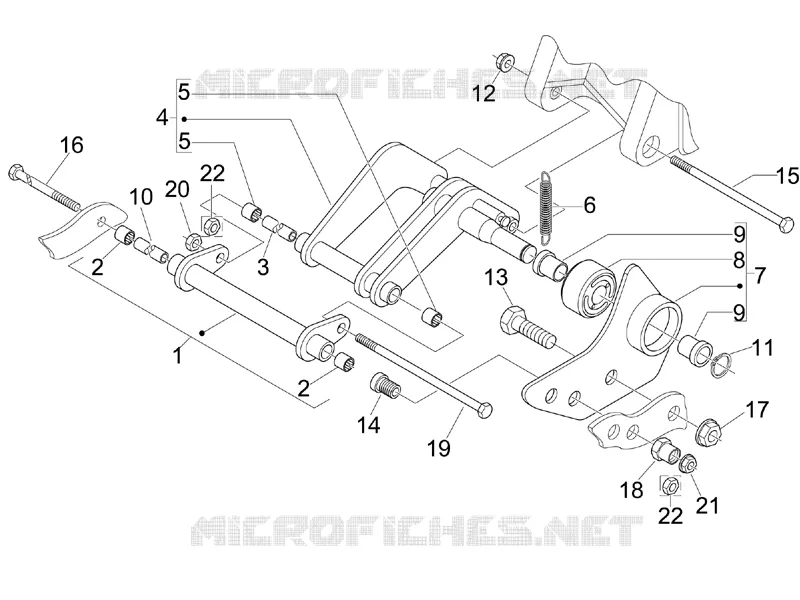

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
