1
Engine displacement
125
2
Model
BEVERLY
3
Year
2006
4
Trim
Beverly
5
Parts Catalog

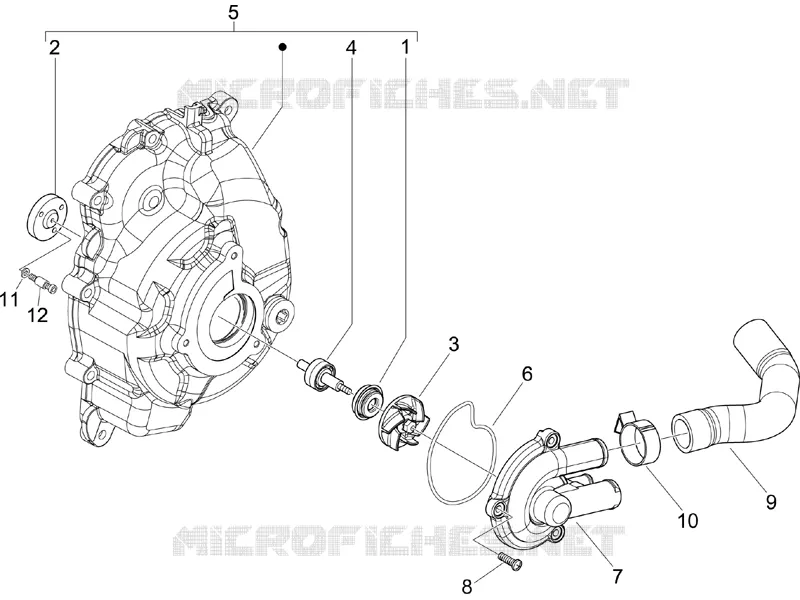

Cooler pump
6
Parts Diagram
Parts Catalog
Driven pulley
by
Flywheel magneto
Cooler pump
10
9
8
7
6
5
4
3
2
1
12
11
1
Gasket ring
842595
Not Available
2
Drive coupling
487459
Not Available
3
Water pump impeller cpl.
844730
£12,84 Unit Price incl. VAT
4
Water pump shaft assy.
8456335
£82,48 Unit Price incl. VAT
5
Bearing 28x8x9
82755R
£14,66 Unit Price incl. VAT
5
Flywheel cover cpl.
8482595
Not Available
5
Flywheel cover
8447485
Not Available
6
O-ring
485080
£2,23 Unit Price incl. VAT
7
Water pump cover
486237
£26,18 Unit Price incl. VAT
8
Screw M5x22
828662
£1,33 Unit Price incl. VAT
9
Oil delivery pipe
840022
Not Available
10
Hose clamp
CM001908
£2,06 Unit Price incl. VAT
11
Washer
828535
£0,16 Unit Price incl. VAT
12
screw
828569
Not Available
12
Special screw
82869R
£15,30 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
