Crankcase for Beverly from 2006

Free shipping for all orders to United Kingdom over £150! See conditions.

Crankcase

1

Crank-case

CM1281035001

Not Available

1

Crankcase assy

CM1529035002

Not Available

1

Crankcase assy

CM1529035001

Not Available

1

Crank-case

CM1281035002

Not Available

2

Cup

840489

£1,24 Unit Price incl. VAT

3

Pin 6,5x9,5x15

239388

Not Available

4

Plug M12x1,5

411311

Not Available

5

Nozzle

484034

£7,96 Unit Price incl. VAT

6

Bush Ã˜8xÃ˜12x8

431860

£1,43 Unit Price incl. VAT

7

Radial ball bearing 15x42x13

485912

Not Available

8

Radial bearing 20x47x14

485913

Not Available

9

Springs fixing pin

483785

£4,82 Unit Price incl. VAT

10

Silent-block

486081

£9,73 Unit Price incl. VAT

11

screw M6x60

432142

Not Available

12

Circlip 25x26.9x1.2

000674

Not Available

13

Gasket ring

82539R

Not Available

13

Gasket ring 20-32-7

82878R

£12,89 Unit Price incl. VAT

14

Gasket ring

82540R

Not Available

15

Locating dowel Ã˜11x10

478115

Not Available

16

Nozzle D 1.1

844582

£7,64 Unit Price incl. VAT

17

Locating dowel

484993

£1,16 Unit Price incl. VAT

18

Stud bolt

829375

Not Available

19

Locating dowel Ã˜7,5x12

277916

£6,38 Unit Price incl. VAT

20

screw M6x60

432142

Not Available

21

Half crankcase gasket

845212

Not Available

22

Lower oil bulkhead

483767

£10,06 Unit Price incl. VAT

23

Upper oil bulkhead

485047

£12,44 Unit Price incl. VAT

24

Screw w/ flange M5x16

830061

£2,48 Unit Price incl. VAT

25

Filter door insert

845861

£10,25 Unit Price incl. VAT

26

Gasket

431065

£0,90 Unit Price incl. VAT

27

Spring

485655

£1,13 Unit Price incl. VAT

28

Complete oil level dipstick

832130

£5,47 Unit Price incl. VAT

29

Gasket ring 14,43x9,19x2,62

827085

£0,62 Unit Price incl. VAT

30

Oil pressure valve

829661

£11,54 Unit Price incl. VAT

31

Screw M5x10

018575

Not Available

32

Plate

828766

Not Available

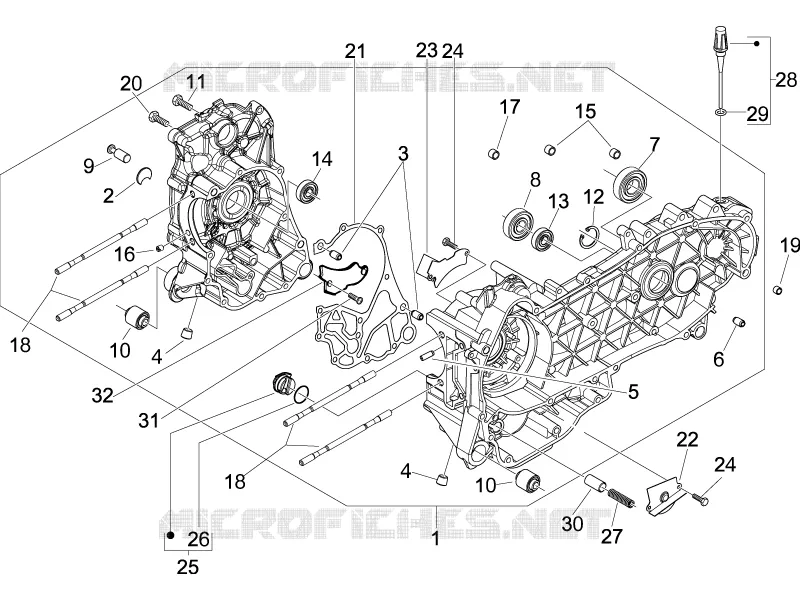

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
