1
Engine displacement
125
2
Model
BEVERLY
3
Year
2006
4
Trim
Beverly
5
Parts Catalog
Cylinder-piston-wrist pin unit
6
Parts Diagram
Parts Catalog
by
Driven pulley

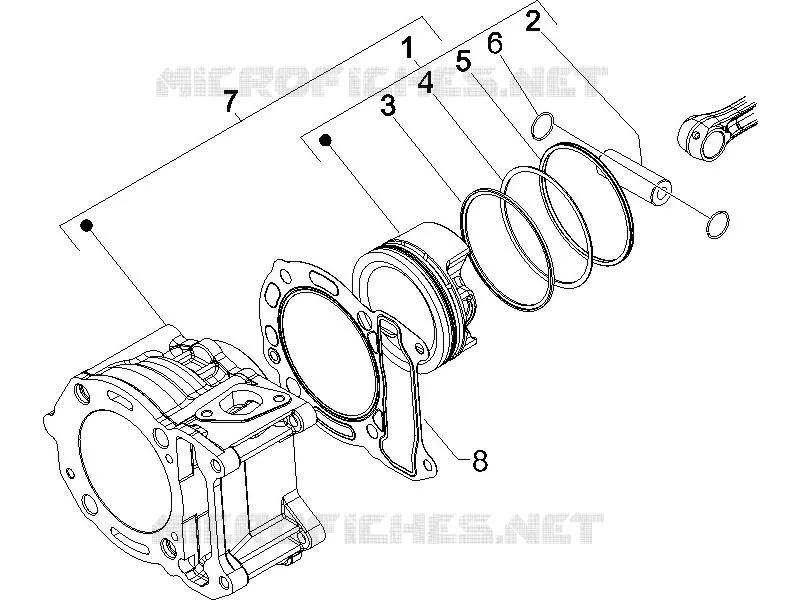

Cylinder-piston-wrist pin unit
8
7
6
5
4
3
2
1
1
Piston-wrist pin assy.
8284665002
Not Available
1
Piston-wrist pin assy.
8284665004
Not Available
1
Piston-wrist pin assy.
8284665003
Not Available
1
Piston-wrist pin assy.
8284665001
Not Available
2
Piston pin
482335
£13,97 Unit Price incl. VAT
3
Oil scraper ring d.57x1
486362
£39,46 Unit Price incl. VAT
4
Compression ring d.57x1
485779
£21,97 Unit Price incl. VAT
5
Oil scraper ring d.57x2,5
485914
£20,21 Unit Price incl. VAT
6
Snap ring
963486
£0,58 Unit Price incl. VAT
7
Cylinder - piston - pin - parts- rings assembly
840566
Not Available
8
Cylinder base gasket 0,6 mm
875113
£14,40 Unit Price incl. VAT
8
Cylinder base gasket 0,4 mm
875112
£14,80 Unit Price incl. VAT
8
Cylinder base gasket 0,8 mm
828148
Not Available
8
Cylinder base gasket 0,6 mm
828147
Not Available
8
Cylinder base gasket 0,4 mm
828146
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
