Handlebars coverages for Beverly E3 from 2007

Free shipping for all orders to United Kingdom over £150! See conditions.

Handlebars coverages

1

Upper handlebar cover

624720000P

£74,46 Unit Price incl. VAT

2

Handlebar cover

622283000P

Not Available

3

Self tapping screw 4,2x25*

014754

Not Available

4

Spring plate

CM017409

£1,27 Unit Price incl. VAT

5

FRONT HANDLEBARS COVER

6249620087

£154,48 Unit Price incl. VAT

5

Handlebar lower cover

62496200AF

Not Available

5

Handlebar lower cover

62496200F2

Not Available

5

FF H/BAR COVER

62496200DE

£154,48 Unit Price incl. VAT

5

Handlebar lower cover

62496200ND

£154,48 Unit Price incl. VAT

5

Handlebar lower cover

624962

Not Available

6

Self-tap screw M3x20

258146

£0,65 Unit Price incl. VAT

7

Self tapping screw

297498

£0,60 Unit Price incl. VAT

8

Self tapping screw M4x16

267115

£0,62 Unit Price incl. VAT

9

Screw M4,2x13

259349

£0,79 Unit Price incl. VAT

10

Spring plate

CM017409

£1,27 Unit Price incl. VAT

11

PUMP COVER

621474

Not Available

11

Plug

621474000P

£12,88 Unit Price incl. VAT

12

PUMP COVER

621473

Not Available

12

Plug

621473000P

£12,88 Unit Price incl. VAT

13

Hex socket screw

581957

£0,30 Unit Price incl. VAT

14

Plate

CM017418

£1,27 Unit Price incl. VAT

15

Windshield

622241000P

£26,96 Unit Price incl. VAT

16

Pad

180095

£1,09 Unit Price incl. VAT

17

Plate

085508

Not Available

18

Self tapping screw M4x16

267115

£0,62 Unit Price incl. VAT

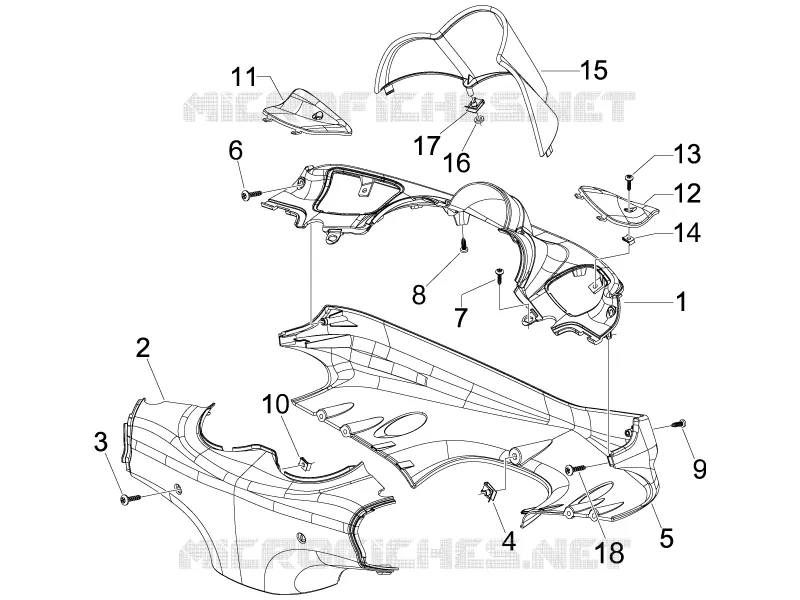

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
