Parts Catalog
Cylinder-piston-wrist pin, assy
6
Parts Diagram
Parts Catalog
Oil filter
by
Secondary air box

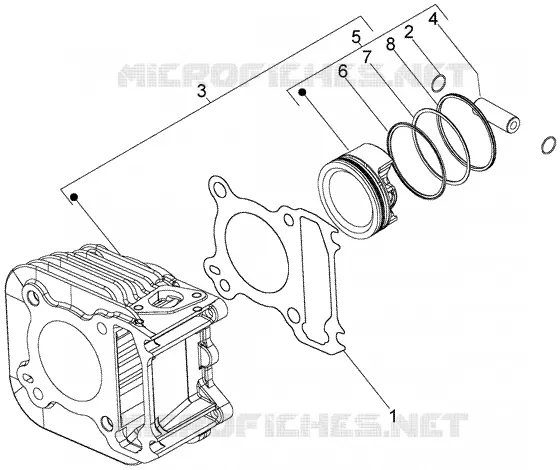

Cylinder-piston-wrist pin, assy
1
2
3
4
5
6
7
8
1
Cylinder base gasket 0,8 mm
828148
Not Available
1
Cylinder base gasket 0,6 mm
828147
Not Available
1
Cylinder base gasket 0,4 mm
828146
Not Available
2
Snap ring
963486
£0,58 Unit Price incl. VAT
3
Cylinder assembly-piston-pin (Cast-iron)
831975
£337,87 Unit Price incl. VAT
4
Piston pin
482335
£13,97 Unit Price incl. VAT
5
Piston + piston pin Cat.2
8270280002
Not Available
5
Piston + piston pin Cat.3
8270280003
Not Available
5
Pist.-wrist pin assy.
827030
Not Available
5
Pist.-wrist pin assy.
827029
Not Available
5
Piston + piston pin Cat.1
8270280001
Not Available
5
Pist.-wrist pin assy.
827031
Not Available
5
Piston + piston pin Cat.4
8270280004
Not Available
6
Gasket ring
488016
Not Available
6
Gasket ring
488012
Not Available
6
Gasket ring
488008
Not Available
6
Compression ring Ø62,6x1
486294
Not Available
7
Oil scraper ring Ø62,6x1
486295
Not Available
7
Scraper ring
488013
Not Available
7
Scraper ring
488017
Not Available
7
Scraper ring
488009
Not Available
8
Scraper ring
488010
Not Available
8
Oil scraper ring Ø62,6x2,5
486355
Not Available
8
Scraper ring
488018
Not Available
8
Scraper ring
488014
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
