1
Engine displacement
250
2
Model
BEVERLY
3
Year
2006
4
Trim
Beverly ie E3
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Front glove-box - Knee-guard panel
by
Handlebars - Master cil.

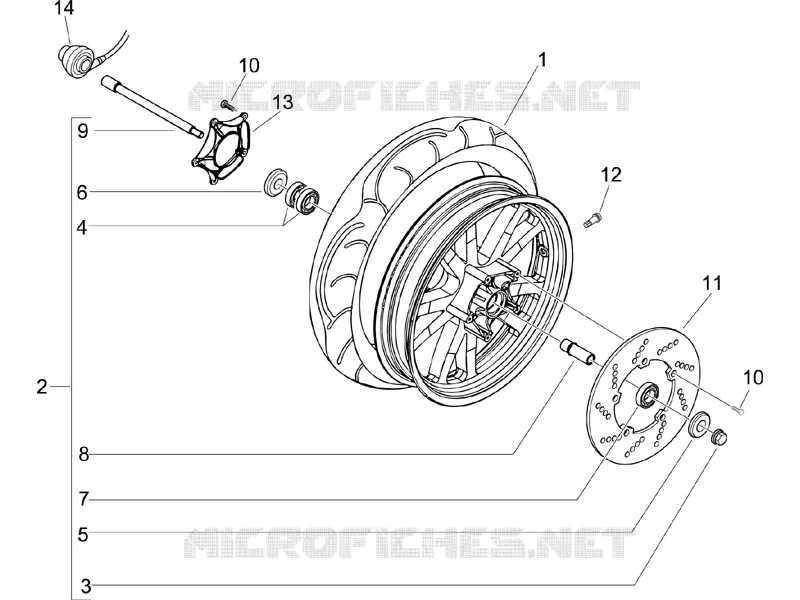

Front wheel
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
1
Tyre (Pirelli) 110/70-16"
601923
Not Available
1
(Michelin) Tyre 110/70-16"
601924
Not Available
2
Wheel
597290T0B1
Not Available
3
Nut M12
271740
£2,20 Unit Price incl. VAT
4
Bearing
327187
Not Available
5
Short spacer
564448
£12,91 Unit Price incl. VAT
6
RH spacer
564489
£14,76 Unit Price incl. VAT
7
Bearing
564491
Not Available
8
Spacer
597291
£20,26 Unit Price incl. VAT
9
Front wheel axle
599357
Not Available
10
Hex socket screw M6x20
271147
Not Available
11
Brake disc
597243
Not Available
12
Tubeless valve
597679
£6,16 Unit Price incl. VAT
13
Wheel hub cap
6002330043
Not Available
14
Spedometer socket
56147R
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
