1
Engine displacement
250
2
Model
BEVERLY
3
Year
2006
4
Trim
Beverly ie E3
5
Parts Catalog

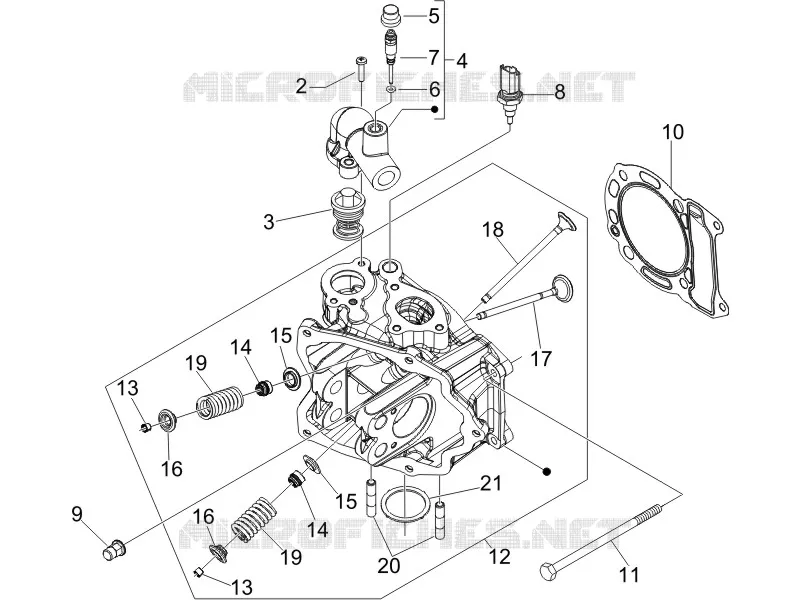

Head unit - Valve
6
Parts Diagram
Parts Catalog
Rear cover - Splash guard
by
Flywheel magneto
Head unit - Valve
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
15
15
16
16
17
18
19
19
20
21
1
Gasket
297027
£1,51 Unit Price incl. VAT
2
Hex socket screw M5x20
845753
Not Available
3
Thermostat
82831R
Not Available
4
Thermostat cover
845604
Not Available
5
Bleed valve cap
063435
Not Available
6
Gasket
297027
£1,51 Unit Price incl. VAT
7
Bleed screw
845605
£15,49 Unit Price incl. VAT
8
Temperature gauge
639000
Not Available
9
Nut M8x1,25
411296
£1,97 Unit Price incl. VAT
10
Cylinder head gasket 0,3 mm
831174
£19,27 Unit Price incl. VAT
11
screw
844160
Not Available
12
Cylinder head assy.
848851
Not Available
13
Valve half-cone
285846
£1,98 Unit Price incl. VAT
14
Valve gasket ring
436438
£11,03 Unit Price incl. VAT
15
Lower cap
483711
£2,12 Unit Price incl. VAT
16
Upper cap
483914
£5,71 Unit Price incl. VAT
17
Intake valve
484733
Not Available
17
Intake valve
843362
Not Available
18
Exhaust valve
829785
Not Available
18
Exhaust valve
843363
Not Available
19
Spring
828480
£11,04 Unit Price incl. VAT
20
Stud bolt M7
435629
£1,87 Unit Price incl. VAT
21
Exhaust pipe gasket
480853
£5,16 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
