1
Engine displacement
250
2
Model
BEVERLY
3
Year
2006
4
Trim
Beverly ie E3
5
Parts Catalog

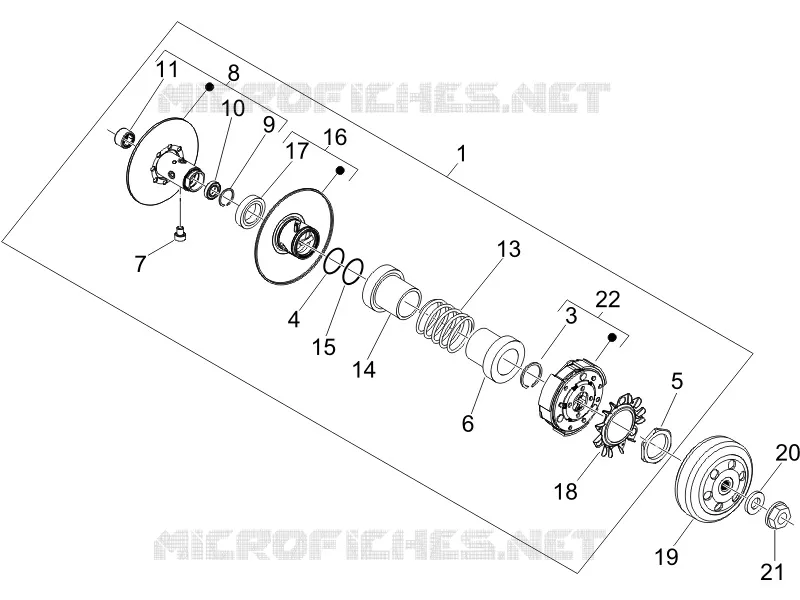

Driven pulley
6
Parts Diagram
Parts Catalog
Stand/s
by
Locks
Driven pulley
1
3
4
5
6
7
8
9
10
11
13
14
15
16
17
18
19
20
21
22
1
Pulley
82818R
Not Available
3
Gasket ring
006410
Not Available
4
Gasket
430585
£0,88 Unit Price incl. VAT
5
Ring nut
433232
£13,28 Unit Price incl. VAT
6
Clutch side cap
487936
£8,76 Unit Price incl. VAT
7
Guide pin L=12,5
828717
£1,50 Unit Price incl. VAT
8
Sec. fixed sheave, complete
833669
Not Available
9
Snap ring
483226
£1,87 Unit Price incl. VAT
10
Radial bearing 17x30
483261
Not Available
11
Roller cage 20x29x18
82518R
£29,20 Unit Price incl. VAT
13
Variator spring
833673
£11,71 Unit Price incl. VAT
14
Cup
833674
£31,13 Unit Price incl. VAT
15
O-ring
834044
£3,34 Unit Price incl. VAT
16
Sec. sliding sheave, complete
841774
Not Available
17
Gasket ring
431089
£8,58 Unit Price incl. VAT
18
Fan
482305
£7,19 Unit Price incl. VAT
19
Clutch drum
8440494
£74,72 Unit Price incl. VAT
19
Clutch drum
844049
Not Available
20
Flat washer 22x12,1x1
274246
£1,00 Unit Price incl. VAT
21
Nut M12x1.25
486324
£1,04 Unit Price incl. VAT
22
Clutch assy
CM1440175
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
