1
Engine displacement
250
2
Model
BEVERLY
3
Year
2006
4
Trim
Beverly ie E3
5
Parts Catalog
Crankcase cover - Crankcase cooling
6
Parts Diagram
Parts Catalog
Fork's components (Escorts)
by
Front shield

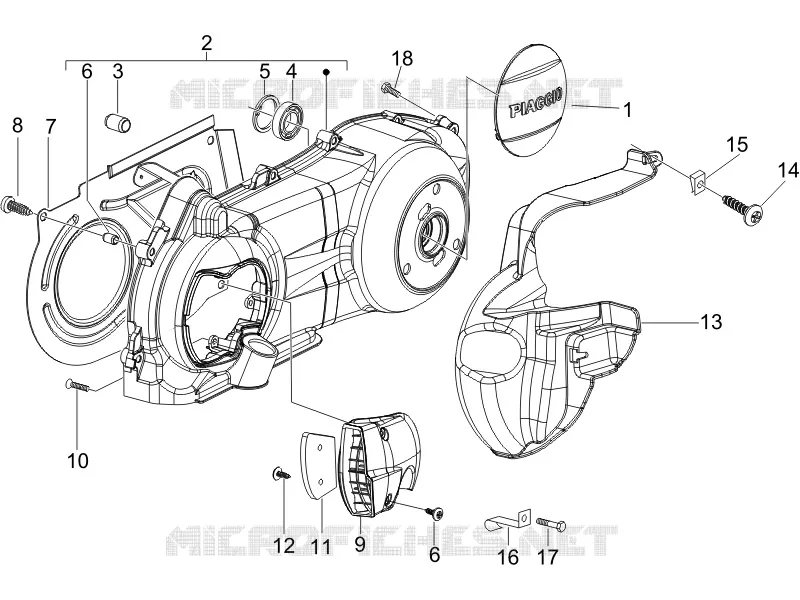

Crankcase cover - Crankcase cooling
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Plug
CM121901
Not Available
2
Transmission cover
8418095
Not Available
2
Variator cover
8714085
Not Available
3
Pin 6,5x9,5x15
239388
Not Available
4
Bearing
478985
Not Available
5
Snap ring
006635
Not Available
6
Bush Ø8xØ12x8
431860
£1,43 Unit Price incl. VAT
7
Air deflector
834266
£20,56 Unit Price incl. VAT
8
Self-tapping screw
430264
£0,62 Unit Price incl. VAT
9
Cooling Cover
842090
£19,67 Unit Price incl. VAT
10
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
11
Filtering element
842093
£3,12 Unit Price incl. VAT
12
Self-tap screw M3x20
258146
£0,65 Unit Price incl. VAT
13
pipe
621126
£20,95 Unit Price incl. VAT
14
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
15
Spring plate
CM017410
£0,71 Unit Price incl. VAT
16
Hose clamp
844964
£1,99 Unit Price incl. VAT
16
Hose clamp
830242
Not Available
17
screw M6x60
432142
Not Available
18
Screw w/ flange M6x30
289731
Not Available
20
Hot air deflector
840177
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
