1
Engine displacement
250
2
Model
BEVERLY
3
Year
2008
4
Trim
Beverly ie E3
5
Parts Catalog
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
6
Parts Diagram
Parts Catalog
Meter combination - Cruscotto
by
Oil pump

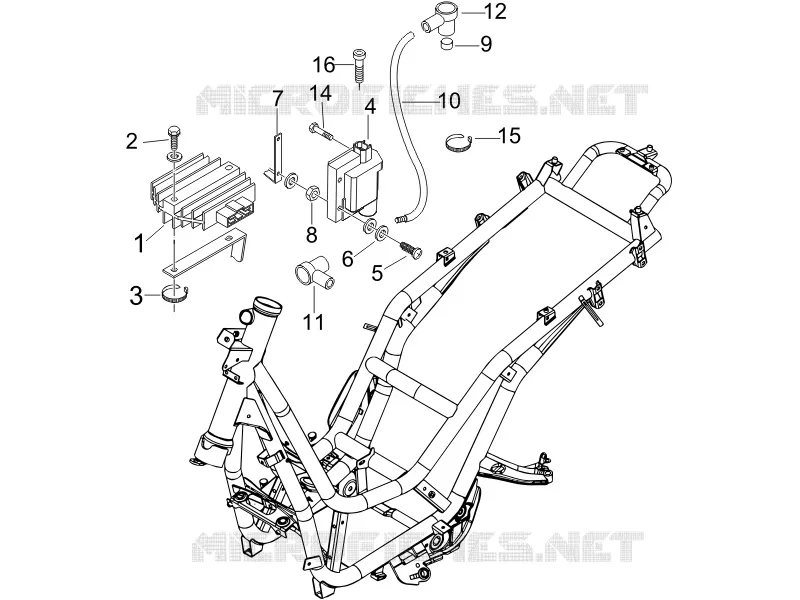

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
1
Voltage regulator
58086R
Not Available
2
screw M6x35
414838
£1,27 Unit Price incl. VAT
2
Screw w/ flange M6x30
289731
Not Available
3
Hose clamp
573918
£1,00 Unit Price incl. VAT
4
HT coil
58120R
£53,05 Unit Price incl. VAT
5
screw M3x20
583236
£1,27 Unit Price incl. VAT
6
Washer 3.2x5.7x0.9
012554
Not Available
7
Support clamp
624188
£9,98 Unit Price incl. VAT
8
Nut M 3
020003
Not Available
9
Spark plug prot.collar
828210
Not Available
10
H.V. cable
080341
Not Available
11
End cap
015014
Not Available
12
Screened cap
293845
£25,22 Unit Price incl. VAT
13
Insulating cap
071671
Not Available
14
Screw w/ flange M6x16
434541
Not Available
15
Support clamp
581767
£1,32 Unit Price incl. VAT
16
screw M5x21
015856
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
