Engine displacement
300
2
Model
BEVERLY
3
Year
2009
4
Trim
Beverly ie Tourer E3
5
Parts Catalog
Front glove-box - Knee-guard panel
6
Parts Diagram
Parts Catalog
Crankcase
by
Helmet huosing - Undersaddle
Front glove-box - Knee-guard panel
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
1
Complete front top box
65293900BT
Not Available
1
Complete front top box
65293900RR
Not Available
1
Complete front top box
65293900DE
Not Available
1
Complete front top box
65293900XN2
Not Available
1
Complete front top box
65293900EU
Not Available
1
Complete front top box
652939
Not Available
2
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
3
Screw M6x16
272836
£1,13 Unit Price incl. VAT
4
Spring plate
CM017410
£0,71 Unit Price incl. VAT
5
Glove compartment door
621672000C
Not Available
6
Spring plate
CM017410
£0,71 Unit Price incl. VAT
7
Square
252420
£3,88 Unit Price incl. VAT
8
Door fixing bracket
257614
£1,72 Unit Price incl. VAT
9
Counter flap
576794
£36,44 Unit Price incl. VAT
10
Self tapping screw
296141
£1,39 Unit Price incl. VAT
11
Self tapping screw
297498
£0,60 Unit Price incl. VAT
12
Pawl
575607
£3,14 Unit Price incl. VAT
13
Pin
270147
Not Available
14
Spring
577005
Not Available
15
Lever
577861
£5,75 Unit Price incl. VAT
16
Pin
575062
£3,35 Unit Price incl. VAT
17
Bag holder hook
575819
£14,98 Unit Price incl. VAT
18
Spring plate M6
254485
£1,64 Unit Price incl. VAT
19
Spring
575610
Not Available
20
Catch spring
299693
£0,70 Unit Price incl. VAT
21
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
22
Cover
190567
£8,02 Unit Price incl. VAT
23
Flap packing
CM006303
Not Available
24
Coolant insp. door
62166900DE
Not Available
24
Coolant insp. door
62166900XN2
Not Available
24
Coolant insp. door
62166900EU
Not Available
24
Coolant insp. door
62166900RR
Not Available
24
Coolant insp. door
62166900BT
£63,28 Unit Price incl. VAT
24
Coolant insp. door
621669
£52,02 Unit Price incl. VAT
25
Self tapping screw
297498
£0,60 Unit Price incl. VAT
26
Left top box internal frame
CM012001000C
£14,78 Unit Price incl. VAT
26
LUGGAGE COMPART. FRAME
CM012001
Not Available
27
Right top box internal frame
CM012002
Not Available
27
Right top box internal frame
CM012002000C
£14,78 Unit Price incl. VAT
28
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT

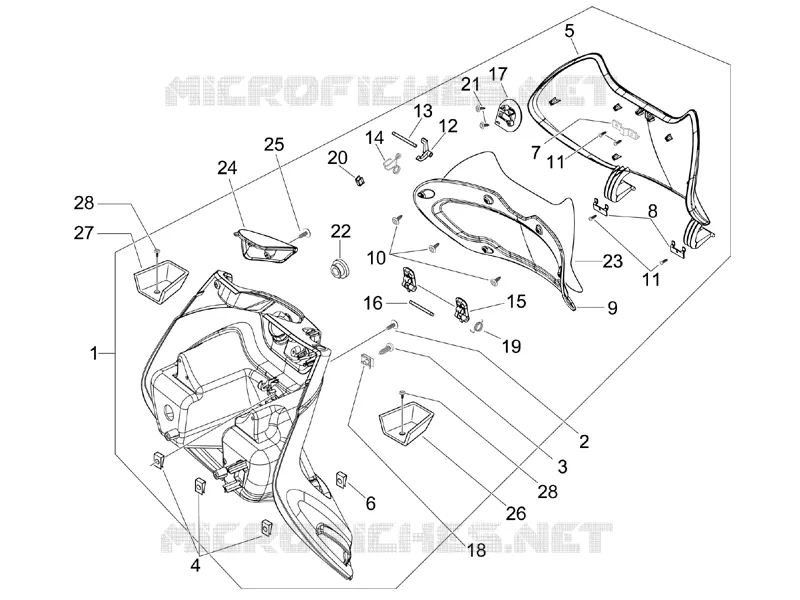

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
