1
Engine displacement
50
2
Model
FLY
3
Year
2006
4
Trim
Fly 4T 2V
5
Parts Catalog

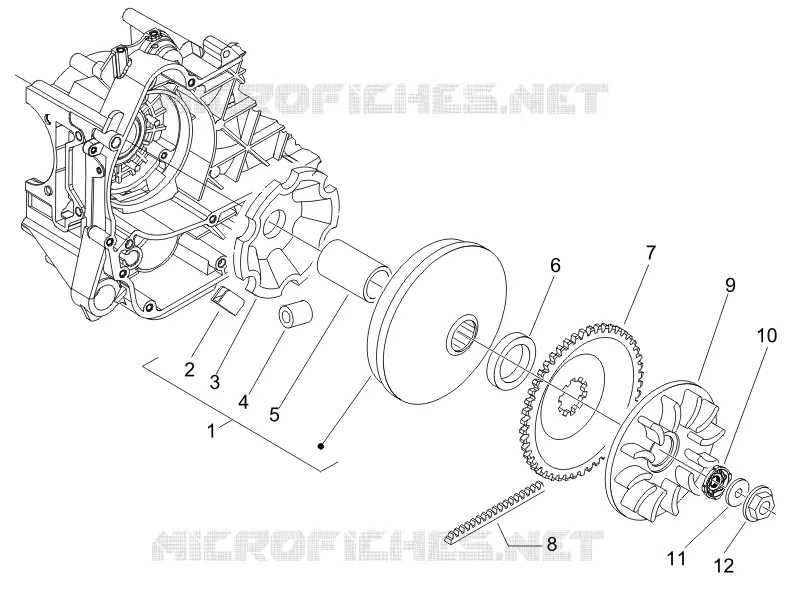

Driving pulley
6
Parts Diagram
Parts Catalog
Cylinder head cover
by
Driven pulley
Driving pulley
1
2
3
4
5
6
7
8
9
10
11
12
1
Half-pulley assy., driving
CM110301
£70,45 Unit Price incl. VAT
1
Half-pulley assy., driving 25 KM/H
CM110303
£98,11 Unit Price incl. VAT
2
Sliding block
289931
£1,14 Unit Price incl. VAT
3
Roller contrast
480227
£13,52 Unit Price incl. VAT
4
Rollers kit
CM1102025
£17,08 Unit Price incl. VAT
4
Rollers kit 25 KM/H
CM1102045
£17,08 Unit Price incl. VAT
5
Spacer
480230
£33,98 Unit Price incl. VAT
6
Spacer 25 KM/H
CM100608
£7,64 Unit Price incl. VAT
6
Spacer
CM100602
Not Available
7
Fixed driving half pulley
479561
£26,48 Unit Price incl. VAT
8
V-belt
842907
£36,77 Unit Price incl. VAT
9
Fan
845611
£5,88 Unit Price incl. VAT
10
Toothed bushing
479866
Not Available
11
Washer
265300
£1,20 Unit Price incl. VAT
12
Flanged nut M10x1,25
289519
£1,27 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
