Rear cover - Splash guard for MP3 500 from 2007

Free shipping for all orders to United Kingdom over £150! See conditions.

Rear cover - Splash guard

1

Rear protection

653447

£133,22 Unit Price incl. VAT

2

screw M6x16

624995

£1,27 Unit Price incl. VAT

3

Screw M6x16

272836

£1,13 Unit Price incl. VAT

4

Spring plate M6

254485

£1,64 Unit Price incl. VAT

5

Engine splash guard

653469

£25,67 Unit Price incl. VAT

6

Spring plate

230359

£0,95 Unit Price incl. VAT

7

Covers

599735

£12,84 Unit Price incl. VAT

8

Screw d4x20

227983

£1,15 Unit Price incl. VAT

9

Splash guard upper closing

654446

£26,48 Unit Price incl. VAT

10

Number plate holder

654840

£17,74 Unit Price incl. VAT

11

screw

576668

Not Available

12

Self locking nut M6

288245

£0,76 Unit Price incl. VAT

13

Number plate holder

584884

£31,69 Unit Price incl. VAT

14

screw M4x14

018591

Not Available

15

Flat washer 4,2x12x1

013763

Not Available

16

Flat washer 4,2x7,6x0,9

016404

Not Available

17

Nut M4

020104

Not Available

18

Rear retroreflector

582058

Not Available

19

Number-plate extension

584877

£5,88 Unit Price incl. VAT

20

Plug screw

268596

£0,62 Unit Price incl. VAT

21

Self tapping screw

297498

£0,60 Unit Price incl. VAT

22

Self-tap screw

576189

Not Available

23

Expansion plug

199190

£0,17 Unit Price incl. VAT

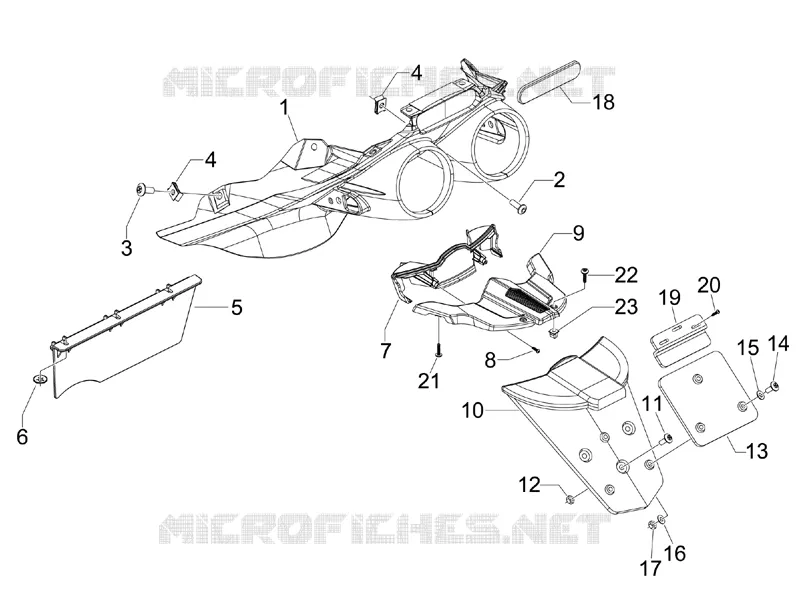

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
