Parts Catalog
Central cover - Footrests
6
Parts Diagram
Parts Catalog
Handlebars - Master cil.
by
Crankshaft

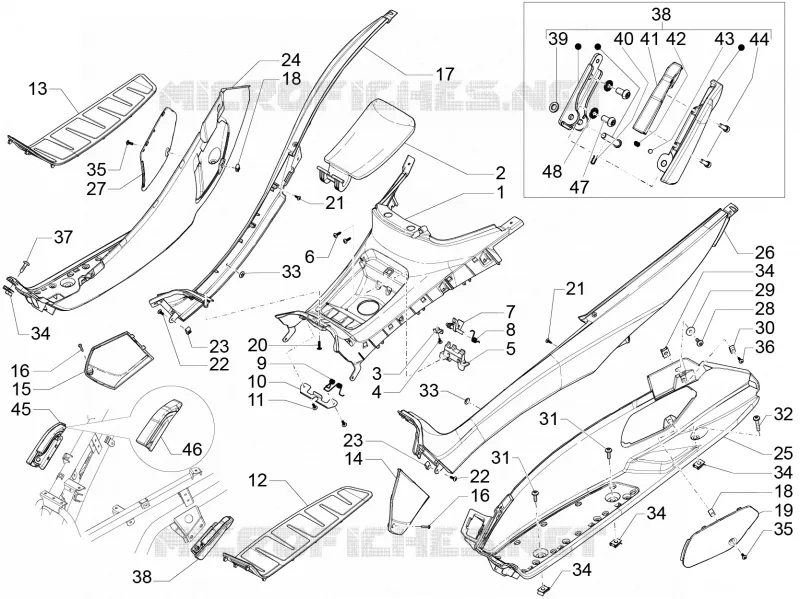

Central cover - Footrests
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
18
19
20
21
21
22
22
23
23
24
25
26
27
28
29
30
31
31
32
33
33
34
34
34
34
34
35
35
36
37
38
38
39
40
41
42
43
44
45
46
47
48
1
Tunnel
2B0007120000C
Not Available
2
Fuel filler lid
2B0007110000C
£119,69 Unit Price incl. VAT
3
Plate
AP8161182
£15,12 Unit Price incl. VAT
4
Self tapping screw
297498
£0,60 Unit Price incl. VAT
5
Maintenance
620491
£3,46 Unit Price incl. VAT
6
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
7
Cam lever
576626
£2,20 Unit Price incl. VAT
8
Spring
575604
£2,70 Unit Price incl. VAT
9
Spring
621507
£7,58 Unit Price incl. VAT
10
Flap retainer plate
624465
£7,96 Unit Price incl. VAT
11
Knurled bushing
830056
£1,27 Unit Price incl. VAT
12
Lh mat
653426
Not Available
13
Rh mat
674360
£36,74 Unit Price incl. VAT
14
Left fuse access flap
2B000750
£36,94 Unit Price incl. VAT
14
Left fuse access flap
2B000750000NM
Not Available
15
Right fuse access flap
2B000749000NM
£35,24 Unit Price incl. VAT
15
Right fuse access flap
2B000749
£36,94 Unit Price incl. VAT
16
screw
015728
Not Available
17
Right central side
1B002013000NM
£86,63 Unit Price incl. VAT
17
Right central side
2B000717000NM
Not Available
17
Right central side
1B002013
£86,52 Unit Price incl. VAT
17
Right central side
2B000717
£86,52 Unit Price incl. VAT
18
Spring plate
CM017410
£0,71 Unit Price incl. VAT
19
Spark plug insp. door SX
653287000C
£16,45 Unit Price incl. VAT
20
Self tapping screw D4x16
CM180701
£0,52 Unit Price incl. VAT
21
Self tapping screw
297498
£0,60 Unit Price incl. VAT
22
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
23
Spring plate
CM017410
£0,71 Unit Price incl. VAT
24
RH footrest
2B0007190000C
Not Available
25
LH footrest
2B0007200000C
Not Available
26
Left central side
1B002012
£86,52 Unit Price incl. VAT
26
Left central side
2B000718
£86,52 Unit Price incl. VAT
26
Left central side
1B002012000NM
£82,50 Unit Price incl. VAT
26
Left central side
2B000718000NM
Not Available
27
Spark plug insp. door DX
623254000C
£16,45 Unit Price incl. VAT
28
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
29
Washer
297029
£1,27 Unit Price incl. VAT
30
Spring plate
CM017410
£0,71 Unit Price incl. VAT
31
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
32
Screw metrica
CM179303
£1,27 Unit Price incl. VAT
33
Spring plate
230359
£0,95 Unit Price incl. VAT
34
Spring plate M6
254485
£1,64 Unit Price incl. VAT
35
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
36
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
37
Metric screw
CM179307
£1,27 Unit Price incl. VAT
38
Complete left footrest
6568230090
£108,11 Unit Price incl. VAT
39
Flat washer 15x8,4x1,5
003058
Not Available
40
Elastic spring
259933
£0,62 Unit Price incl. VAT
41
LH rear footrests rubber
656993
£12,44 Unit Price incl. VAT
42
Premisphere spring
295590
Not Available
43
Ball D6
295591
Not Available
44
screw
975805
Not Available
45
Complete right footrest
6568250090
£108,11 Unit Price incl. VAT
46
RH rear footrests rubber
656994
£12,44 Unit Price incl. VAT
47
Hex screw M8x30
031122
Not Available
48
Flat washer 15x8,4x1,5
003058
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
