1
Engine displacement
500
2
Model
MP3
3
Year
2013
4
Trim
MP3 500 Business
5
Parts Catalog

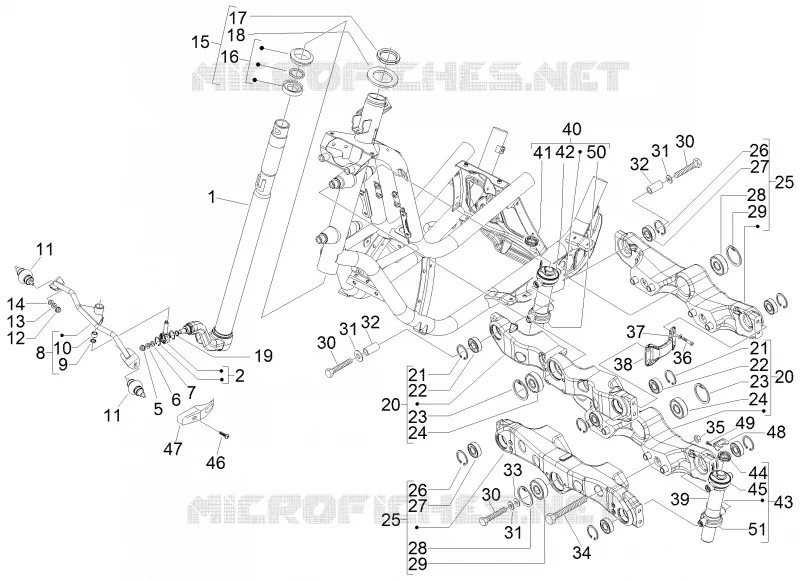

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Control pedals - Levers
by
Rear headlamps - Turn signal lamps
Fork/steering tube - Steering bearing unit
1
2
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
30
31
31
31
32
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
1
Steering control tube with i.p.
667658
£255,53 Unit Price incl. VAT
1
Steering tube assembly with U.P.
58568R
£193,00 Unit Price incl. VAT
2
Steering tube control axis
622751
£68,90 Unit Price incl. VAT
5
Nut M8x1,25
967363
£1,27 Unit Price incl. VAT
6
Washer
006032
Not Available
7
Flat washer 8,4x18x2
003038
Not Available
8
Complete steering control tie rod.
622744
£175,18 Unit Price incl. VAT
9
Gasket ring
167018
£2,88 Unit Price incl. VAT
10
Roller cage
167016
£4,25 Unit Price incl. VAT
11
Complete cardan joint
666901
£262,28 Unit Price incl. VAT
12
Plain washer 8,2x20x2,5
013861
Not Available
13
Washer 16.2x25x1.5
666546
£4,50 Unit Price incl. VAT
14
Nut M8x1,25
967363
£1,27 Unit Price incl. VAT
15
Central headstock bearing unit
6019175
£106,09 Unit Price incl. VAT
16
Upper thrust ring
650693
Not Available
17
Steering tube ring nut
0111094
Not Available
18
Washer of the steering
0037514
Not Available
19
O-ring 8,73x1,78-viton
224202
£1,01 Unit Price incl. VAT
20
Lower complete rear suspension arm
646556
£290,00 Unit Price incl. VAT
21
Snap ring
006635
Not Available
22
Ball bearing
601345
£13,43 Unit Price incl. VAT
23
Circlip
006647
Not Available
24
Ball bearing
601467
£19,43 Unit Price incl. VAT
25
Upper complete rear suspension arm
646561
£286,18 Unit Price incl. VAT
26
Snap ring
006635
Not Available
27
Ball bearing
601345
£13,43 Unit Price incl. VAT
28
Circlip
006647
Not Available
29
Ball bearing
601467
£19,43 Unit Price incl. VAT
30
screw
649392
£3,42 Unit Price incl. VAT
31
Washer
012535
Not Available
32
Bushing
621288
£9,47 Unit Price incl. VAT
33
Flat washer
178790
£1,64 Unit Price incl. VAT
34
screw
030113
Not Available
35
Nut
564878
£1,06 Unit Price incl. VAT
36
screw
975855
£1,24 Unit Price incl. VAT
37
Spring washer
709047
£0,70 Unit Price incl. VAT
38
Suspension arm connection bracket
646543
Not Available
39
Lateral headstock with U.P.
647214
Not Available
40
Steering bearing assy. R.H.
6471835
Not Available
41
Steering tube ring nut
0111094
Not Available
42
Upper thrust ring
600750
Not Available
43
Steering bearing assy. L.H.
6007705
Not Available
44
Steering tube ring nut
0111094
Not Available
45
Upper thrust ring
600750
Not Available
46
Screw M5x22
828662
£1,33 Unit Price incl. VAT
47
Cardan joint small cover
647202
£18,20 Unit Price incl. VAT
48
Brake piping slider
624854
£6,43 Unit Price incl. VAT
49
Screw w/ flange M6x10
969296
£1,27 Unit Price incl. VAT
50
Guard washer
600356
£1,36 Unit Price incl. VAT
51
Guard washer
600356
£1,36 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
