Wheel huosing - Mudguard for MP3 500 Sport ABS E4 from 2017

Free shipping for all orders to United Kingdom over £150! See conditions.

Wheel huosing - Mudguard

1

Left mudguard pipe with U.P.

1C000994

£188,63 Unit Price incl. VAT

2

Left front mudguard

1B004095

£70,38 Unit Price incl. VAT

3

Rear bracket

651271

£7,62 Unit Price incl. VAT

4

Front bracket

1C000992

£4,90 Unit Price incl. VAT

5

Hex socket screw

564606

£1,12 Unit Price incl. VAT

6

Spring washer

709047

£0,70 Unit Price incl. VAT

7

Rear bracket

651271

£7,62 Unit Price incl. VAT

8

Front bracket

1C000992

£4,90 Unit Price incl. VAT

9

Right mudguard pipe with U.P.

1C000997

£188,63 Unit Price incl. VAT

10

Right front mudguard

1B004096

£70,38 Unit Price incl. VAT

11

Hex socket screw

564606

£1,12 Unit Price incl. VAT

12

Spring washer

709047

£0,70 Unit Price incl. VAT

13

Wheel compartment

623255

£55,93 Unit Price incl. VAT

14

Screw

CM180703

£2,42 Unit Price incl. VAT

15

Self tapping screw D4.2x16

CM178601

£1,24 Unit Price incl. VAT

16

Spring plate

CM017410

£0,71 Unit Price incl. VAT

17

Cover

090958

Not Available

18

Wheel housing central part

672142

£27,56 Unit Price incl. VAT

19

Metric screw M6x22

CM179201

£0,62 Unit Price incl. VAT

20

Wheel housing central closing

1B001210

£47,46 Unit Price incl. VAT

21

Self tapping screw D4x16

CM180701

£0,52 Unit Price incl. VAT

22

Metric screw TBC

CM179302

£1,27 Unit Price incl. VAT

23

Spacer

1B001259

£2,36 Unit Price incl. VAT

24

Self tapping screw D4x16

CM180701

£0,52 Unit Price incl. VAT

25

Self tapping screw D4.2x13

CM178603

£1,87 Unit Price incl. VAT

26

Spring plate

CM017410

£0,71 Unit Price incl. VAT

27

Self tapping screw

297498

£0,60 Unit Price incl. VAT

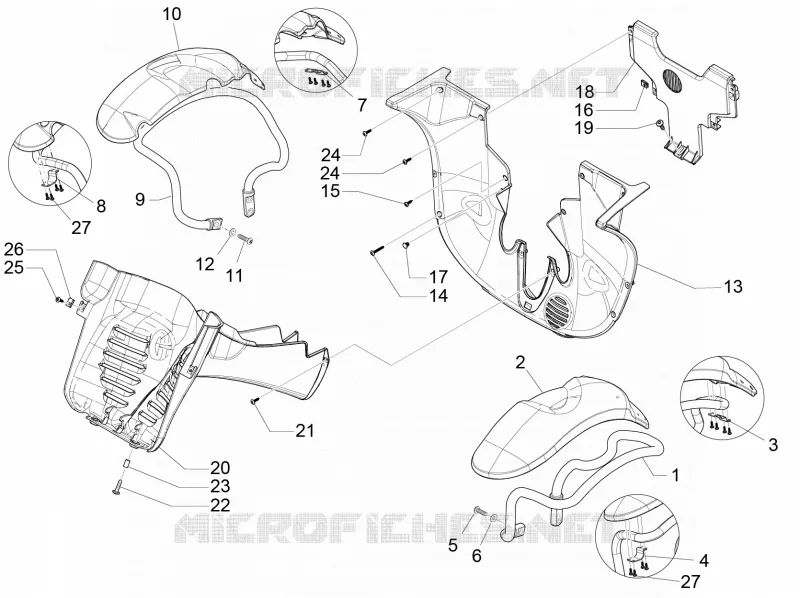

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
