1
Engine displacement
500
2
Model
MP3
3
Year
2018
4
Trim
MP3 500 Business ABS E4
5
Parts Catalog
Remote control switches - Battery - Horn
6

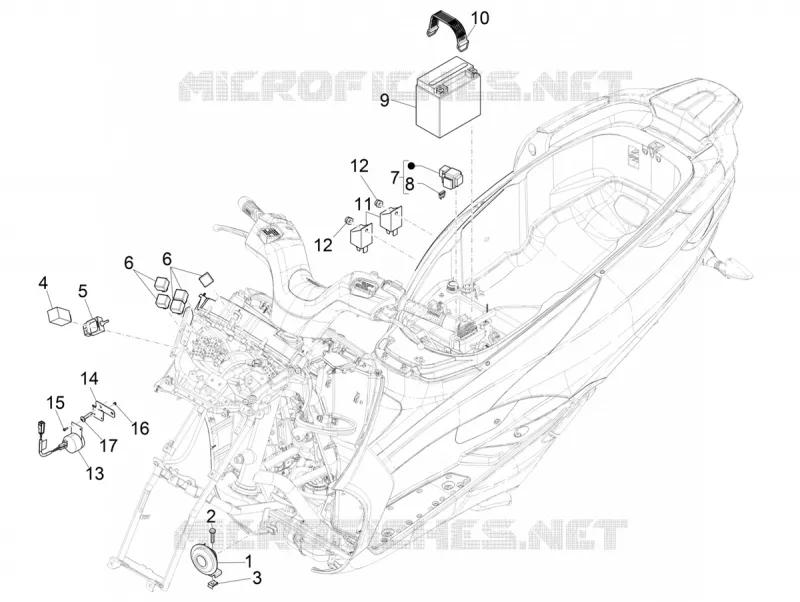

Parts Diagram
Parts Catalog
MIRRORS
by
CYLINDER HEAD - VALVES
Remote control switches - Battery - Horn
1
2
3
4
5
6
6
7
8
9
9
10
11
12
12
13
14
15
16
17
1
Horn
CM071803
£49,12 Unit Price incl. VAT
2
Screw w/ flange M6x16
B016777
£1,27 Unit Price incl. VAT
3
Spring plate M6
254485
£1,64 Unit Price incl. VAT
4
Dispositif de commande des clignotants avec feux de détresse
1D002536R
£30,23 Unit Price incl. VAT
5
Flexible support
291017
£13,44 Unit Price incl. VAT
6
Microrelay with resistance 12V 30A/10A
1D001636
£4,54 Unit Price incl. VAT
7
Starter relay
1D001697R
Not Available
8
Fuse 30A
CM225730
£4,74 Unit Price incl. VAT
9
Battery Yuasa YTX14-BS 12V-12Ah (150x87x145)
638733
£195,61 Unit Price incl. VAT
9
Battery PTX14-BS 12V 12Ah (Piaggio)
1R000319
£119,12 Unit Price incl. VAT
10
Strip
090854
Not Available
11
Starter relay 12V-80A
58115R
£23,16 Unit Price incl. VAT
12
Self locking nut M6
241936
£0,74 Unit Price incl. VAT
13
Buzzer
1D002867
£47,56 Unit Price incl. VAT
14
Support
1B006563
£10,48 Unit Price incl. VAT
15
Hex socket screw
1C000157
£0,31 Unit Price incl. VAT
16
Ecrou de sécurité m3
B005195
£0,95 Unit Price incl. VAT
17
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
