Parts Catalog
Front glove-box - Knee-guard panel
6
Parts Diagram
Parts Catalog
ENGINE ASSEMPLY
by
Fork/steering tube - Steering bearing unit
Front glove-box - Knee-guard panel
1
2
3
3
4
4
5
6
7
8
9
9
10
10
11
11
12
12
13
13
14
15
15
16
16
17
18
19
20
21
21
1
Complete leg shield back plate
2B0009065
£196,46 Unit Price incl. VAT
2
Gasket
1B001388
£107,83 Unit Price incl. VAT
3
Self tapping screw
297498
£0,60 Unit Price incl. VAT
4
Spring plate
CM017410
£0,71 Unit Price incl. VAT
5
Plate
CM017404
£1,24 Unit Price incl. VAT
6
Spring plate
CM017410
£0,71 Unit Price incl. VAT
7
Knee guard
2B000680000NR
£112,72 Unit Price incl. VAT
8
Plug
2B0007360000C
£16,73 Unit Price incl. VAT
9
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
10
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
11
Spring plate
CM017410
£0,71 Unit Price incl. VAT
12
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
13
Expansion plug
199190
£0,17 Unit Price incl. VAT
14
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
15
Metric screw TBC
CM179302
£1,27 Unit Price incl. VAT
16
Spring plate M6
254485
£1,64 Unit Price incl. VAT
17
Spring
464620
£4,97 Unit Price incl. VAT
18
Hook for bag
656849
Not Available
19
Pin
575021
£13,88 Unit Price incl. VAT
20
Catch spring
299693
£0,70 Unit Price incl. VAT
21
Self tapping screw D4x16
CM180701
£0,52 Unit Price incl. VAT

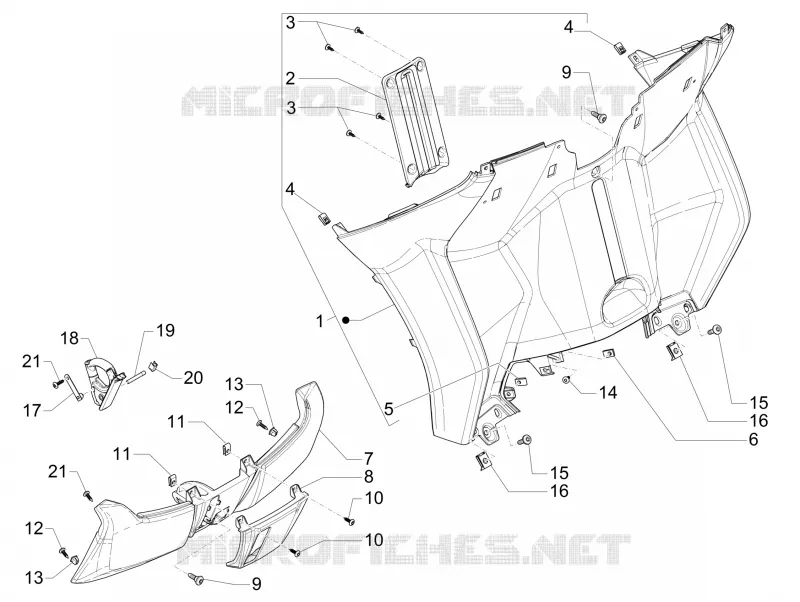

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
