1
Engine displacement
500
2
Model
MP3
3
Year
2011
4
Trim
MP3 500 Business
5
Parts Catalog

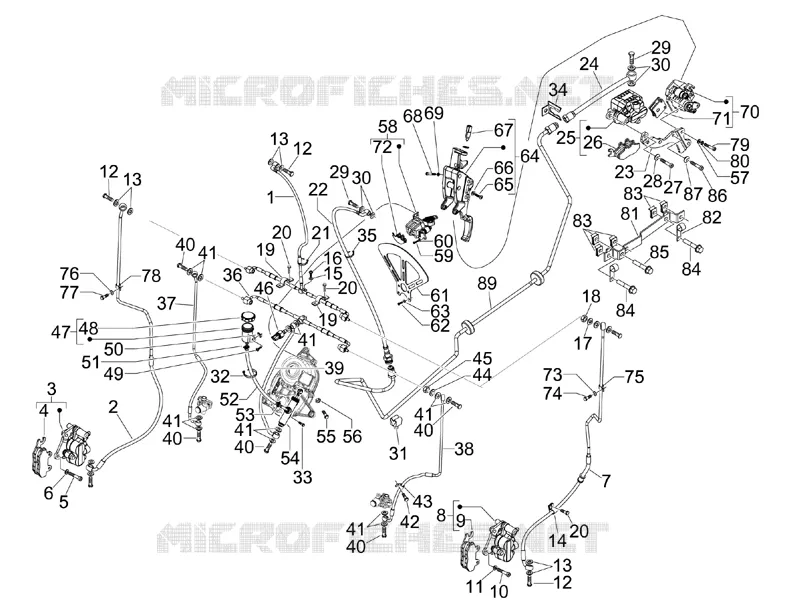

Brakes pipes - Calipers
6
Parts Diagram
Parts Catalog
Flywheel magneto
by
Side cover - Spoiler
Brakes pipes - Calipers
1
2
3
4
5
6
7
8
9
10
11
12
12
12
13
13
13
14
15
16
17
18
19
19
20
20
20
21
22
23
24
25
26
27
28
29
29
30
30
31
32
33
34
35
36
37
38
39
40
40
40
40
40
41
41
41
41
41
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
83
84
84
85
86
87
89
1
Brake tube (pump - rigid piping)
58516R
£271,04 Unit Price incl. VAT
2
RH brake hose
601742
Not Available
3
Brake caliper Heng Tong
CM065707
£147,61 Unit Price incl. VAT
4
Brake pads couple Heng Tong
666574
£22,32 Unit Price incl. VAT
5
screw
271596
£1,13 Unit Price incl. VAT
6
Spring washer
709047
£0,70 Unit Price incl. VAT
7
Left brake pipe
601740
Not Available
8
Brake caliper Heng Tong
CM065708
£119,26 Unit Price incl. VAT
9
Brake pads couple Heng Tong
666574
£22,32 Unit Price incl. VAT
10
screw
271596
£1,13 Unit Price incl. VAT
11
Spring washer
709047
£0,70 Unit Price incl. VAT
12
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
13
Gasket
127927
£1,04 Unit Price incl. VAT
14
Hose clamp
482290
Not Available
15
Spring washer 6,4x11x0,5
006966
Not Available
16
Hex socket screw M6x30
319538
£1,24 Unit Price incl. VAT
17
Washer 6,2x18x2
013950
Not Available
18
Self locking nut M6
241936
£0,74 Unit Price incl. VAT
19
Hose clamp
601970
£4,70 Unit Price incl. VAT
20
Screw w/ flange M6x10
969296
£1,27 Unit Price incl. VAT
21
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
22
Rear flexible brake pipe
601737
£44,52 Unit Price incl. VAT
23
Pin connection bracket
648845
£62,71 Unit Price incl. VAT
24
Flexible front brake piping (LATO PINZA)
649377
Not Available
25
Rear brake caliper
CM068304
£127,56 Unit Price incl. VAT
26
Brake pads couple Heng Tong
647078
£48,58 Unit Price incl. VAT
27
screw
647799
£4,62 Unit Price incl. VAT
28
Plain washer 10,4x18x2
016626
Not Available
29
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
30
Gasket
127927
£1,04 Unit Price incl. VAT
31
Spring
179013
£5,17 Unit Price incl. VAT
32
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
33
Washer
016604
Not Available
34
Plate
136916
£3,37 Unit Price incl. VAT
35
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
36
Brake hose
58517R
£221,82 Unit Price incl. VAT
37
Right rigid brake pipe
601743
£49,72 Unit Price incl. VAT
38
Left rigid brake pipe
601741
£47,35 Unit Price incl. VAT
39
BREAK PIPES
601781
Not Available
40
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
41
Gasket
127927
£1,04 Unit Price incl. VAT
42
Screw w/ flange M6x16
434541
Not Available
43
Hose clamp
D9004461193
Not Available
44
Washer 6,2x18x2
013950
Not Available
45
Self locking nut M6
241936
£0,74 Unit Price incl. VAT
46
Oil switch
640295
£193,75 Unit Price incl. VAT
47
Brake oil tank
274598
£66,44 Unit Price incl. VAT
48
Cover
498431
£25,02 Unit Price incl. VAT
49
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
50
Spring plate
CM017409
£1,27 Unit Price incl. VAT
51
Hose clamp
CM001913
£1,69 Unit Price incl. VAT
52
Anti-tilting oil-pump tank joint pipe
649563
£21,06 Unit Price incl. VAT
53
Hose clamp
CM001901
£1,76 Unit Price incl. VAT
54
Complete brake pump D.16
648798
£94,87 Unit Price incl. VAT
55
screw M4x12
015650
Not Available
56
Nut M4
020004
Not Available
57
Screw w/ flange M6x25
414837
Not Available
58
Mechanical brake pin
649090
£164,34 Unit Price incl. VAT
59
screw
598921
£1,06 Unit Price incl. VAT
60
Spring washer
709047
£0,70 Unit Price incl. VAT
61
Anti-tilting disc
665588
£84,37 Unit Price incl. VAT
62
Hex screw M8x30
599208
£2,42 Unit Price incl. VAT
63
Spring washer
709047
£0,70 Unit Price incl. VAT
64
Complete parking lever assembly.
649420
Not Available
65
Special screw
666294
Not Available
66
Flat washer 4,2x7,6x0,9
016404
Not Available
67
stop Button
583575
£10,80 Unit Price incl. VAT
68
Hex socket screw M6x16
709099
£0,14 Unit Price incl. VAT
69
Spring washer 12x6,4x0,5
006976
Not Available
70
Left parking brake pin
CM084601
£134,14 Unit Price incl. VAT
71
Brake pads couple
649830
£27,06 Unit Price incl. VAT
72
Brake pads couple
648476
£38,77 Unit Price incl. VAT
73
Spring washer 12x6,4x0,5
006976
Not Available
74
Screw w/ flange M6x16
434541
Not Available
75
Fascetta con p.i.
649502
£12,94 Unit Price incl. VAT
76
Spring washer 12x6,4x0,5
006976
Not Available
77
Screw w/ flange M6x16
434541
Not Available
78
Fascetta con p.i.
649502
£12,94 Unit Price incl. VAT
79
screw
319165
£1,27 Unit Price incl. VAT
80
Spring washer
709047
£0,70 Unit Price incl. VAT
81
Bracket
647825
£15,66 Unit Price incl. VAT
82
Hose clamp
649378
£11,94 Unit Price incl. VAT
83
Spring plate M6
254485
£1,64 Unit Price incl. VAT
84
Screw w/ flange M6x16
434541
Not Available
85
Screw w/ flange M6x30
289731
Not Available
86
screw
030076
Not Available
87
Brake washer
598833
£3,05 Unit Price incl. VAT
89
Rigid rear brake pipe
648932
£61,30 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
