Wheel huosing - Mudguard for GILERA PIAGGIO VESPA MP3 500 Business ABS E3-E4 from 2017

Free shipping for all orders to United Kingdom over £150! See conditions.

Flywheel magneto cover - Oil filter

Wheel huosing - Mudguard

1

Wheel compartment

623255

£55,93 Unit Price incl. VAT

2

Self tapping screw D4x16

CM180701

£0,52 Unit Price incl. VAT

3

Screw

CM180703

£2,42 Unit Price incl. VAT

4

Self tapping screw D4x16

CM180701

£0,52 Unit Price incl. VAT

5

Cover

090958

Not Available

6

Wheel housing central part

672142

£27,56 Unit Price incl. VAT

7

Metric screw M6x22

CM179201

£0,62 Unit Price incl. VAT

8

Self tapping screw D4.2x16

CM178601

£1,24 Unit Price incl. VAT

9

Spring plate

CM017410

£0,71 Unit Price incl. VAT

10

Wheel housing central closing

1B001210

£47,46 Unit Price incl. VAT

11

Self tapping screw D4x16

CM180701

£0,52 Unit Price incl. VAT

12

Metric screw TBC

CM179302

£1,27 Unit Price incl. VAT

13

Spacer

1B001259

£2,36 Unit Price incl. VAT

14

Washer 4,5x12x1

016670

Not Available

15

Self tapping screw D4.2x13

CM178603

£1,87 Unit Price incl. VAT

16

Spring plate

CM017410

£0,71 Unit Price incl. VAT

17

Right front mudguard

1C001244

Not Available

18

Right mudguard pipe with U.P.

1C000997

£188,63 Unit Price incl. VAT

19

Front bracket

1C000992

£4,90 Unit Price incl. VAT

20

Rear bracket

651271

£7,62 Unit Price incl. VAT

21

Self tapping screw

297498

£0,60 Unit Price incl. VAT

22

Hex socket screw

564606

£1,12 Unit Price incl. VAT

23

Spring washer

709047

£0,70 Unit Price incl. VAT

24

Left front mudguard

1C001229

Not Available

25

Left mudguard pipe with U.P.

1C000994

£188,63 Unit Price incl. VAT

26

Rear bracket

651271

£7,62 Unit Price incl. VAT

27

Front bracket

1C000992

£4,90 Unit Price incl. VAT

28

Hex socket screw

564606

£1,12 Unit Price incl. VAT

29

Spring washer

709047

£0,70 Unit Price incl. VAT

30

Reflector support

642814

£10,68 Unit Price incl. VAT

31

Lateral reflector

58231R5

£10,73 Unit Price incl. VAT

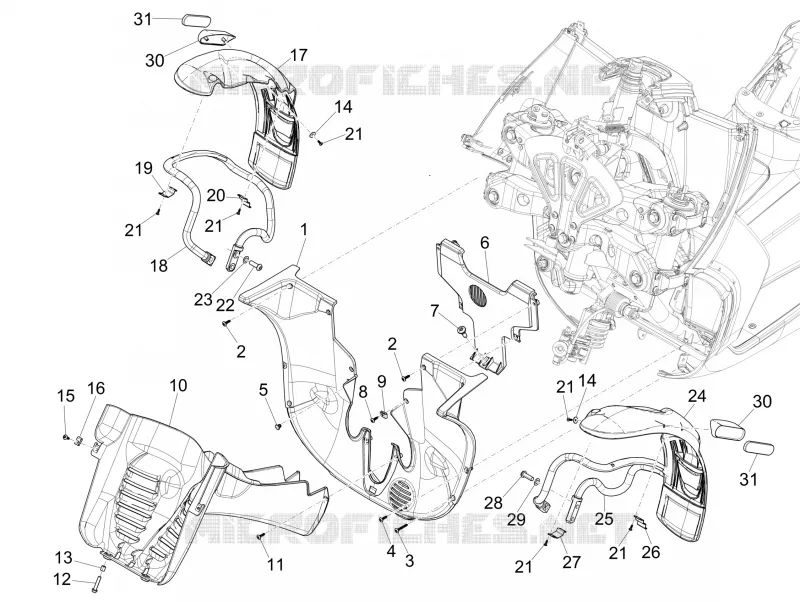

Find the detailed Wheel huosing - Mudguard GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
